Key Specifications / Features

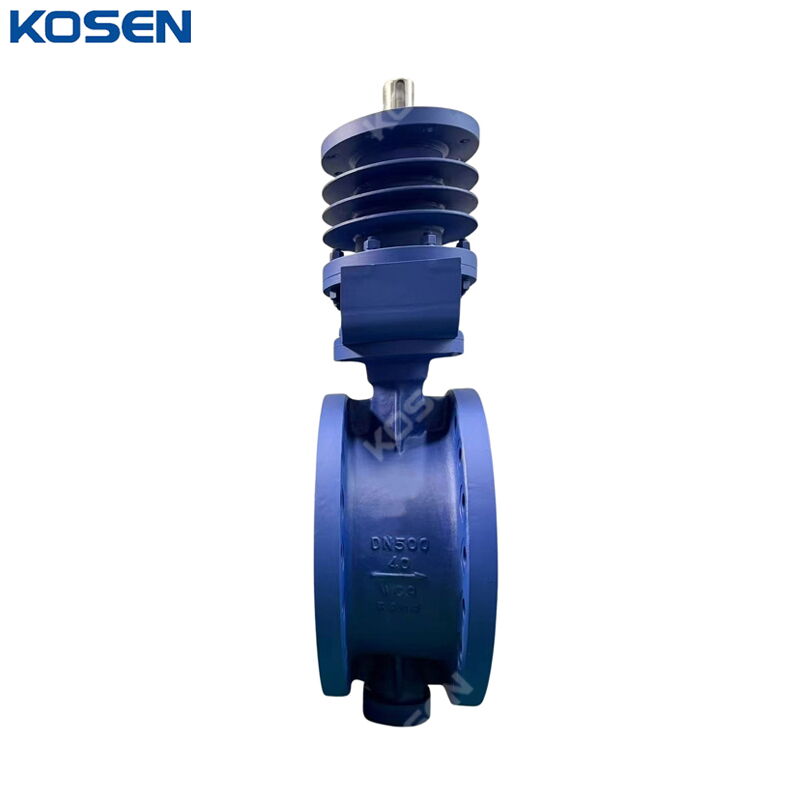

The ASTM A217 WC9 Butterfly Valve Manufacturer specializes in producing high-temperature butterfly valves with triple offset design, adhering to API 609 standards. These valves feature alloy steel bodies, ensuring durability and performance in high-temperature applications. Available in a large size of DN500 (20 inches) and rated for Class 300 LB pressure, they are designed to provide reliable flow control in demanding industrial environments.
- Model No.: KV-20251229-TEBFV-01
- Hits: 0
- Categories: Triple Eccentric Butterfly Valve
- Tags: ASTM A217 WC9 Butterfly Valve, Triple Offset Butterfly Valve, API 609 Butterfly Valve
Detail Information
Product Name: ASTM A217 WC9 Butterfly Valve, High Temperature
Type: Triple Offset Butterfly Valve
Design Standard: API 609
Body Material: ASTM A217 WC9, Alloy Steel
Size: DN500, 500 mm, 20 Inches
Pressure: PN40, Class 300 LB
Operation: Gear Operated
End Connection: Flanged
Medium: Water, Gas, Oil, etc
Temperature Range: -196°C to 550°C
We offer a comprehensive range of triple eccentric butterfly valves in a wide variety of pressure classes, body styles, and materials to meet critical process requirements across diverse industries, including hydrocarbon, power generation, chemical, and fertilizer sectors. The product range includes valves in ASME pressure classes up to Class 600, with sizes up to 64 in. (1600 mm), manufactured in carbon steel, stainless steel, and alloy steels, and suitable for operating temperatures as high as 538°C (1000°F). Valves in higher pressure classes, larger sizes, and alternative materials are available upon customer request. The range also includes valves designed for cryogenic service. The metal-seated valves conform to API 609 requirements. Triple-offset butterfly valves are fully bi-directional and provide high-integrity sealing performance. All machining operations are performed on advanced 5-axis machining centers, and customized welding machines are employed to ensure consistent quality and precision throughout the manufacturing process.
Technical Specification
» Product: Triple Eccentric Butterfly Valve
» Size Ranges: 2-64 Inch (DN50-DN1600) (Larger sizes upon request)
» Pressure Ratings: Class 150-600 LB (PN10-PN100)
» Body Materials: Carbon Steel (ASTM A216 WCB), Stainless Steel (ASTM A351 CF8, CF8M, CF3, CF3M), Low-Temperature Carbon Steel (ASTM A352 LCB, LCC)
» Shaft Material: 17-4PH, SS410, XM-19
» Seat Material: Fully metal seat, SS + Graphite Seat
» Operation: Handle, Worm gear, Pneumatic, Electric
» Temperature Range:
Metal Seat: -29°C to 425°C
Metal Seat (Cryogenic): -196°C to 121°C
» Ends Connections: Wafer, Lugged, Double Flanged, Butt Weld or Grooved
» Actuations: Manual, Pneumatic, Electric, Hydraulic, Counterweight, Electro-hydraulic
Product Features
» Lockable Lever
» Easy Site Maintenance
» Ease of Automation
» Positive Tight Shut-Off
» Optional Top Flanges in Accordance with ISO 5211
» Suitable for Both Gaseous and Liquid Services
» Wide Range of Body and Trim Materials for Various Media Services
» Complies with ISO 5752, BS 5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, and DIN 3202
