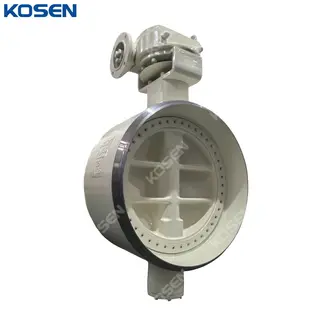

Triple Eccentric Butterfly Valve
The triple eccentric butterfly valve features three key eccentricities: the valve stem, the valve disc, and the conical sealing surface between the disc and seat. This design enables friction-free contact during closure, significantly extending valve life. The elastic sealing ring, whether mounted on the valve seat or disc, adjusts automatically under closing force to ensure uniform pressure distribution and reliable sealing. Its slight deformation further enhances the seal's effectiveness. This valve is widely used in metallurgy, power generation, petrochemicals, water systems, and municipal pipelines for flow regulation and fluid shutoff.
Triple Eccentric Butterfly Valve Product List
1-16 of 61 results
API 609 Triple Offset Butterfly Valve, WCB, 10 Inch, 600 LB
This triple offset butterfly valve features a carbon steel ASTM A216 WCB body manufactured to API 609 standards, delivering high-performance shutoff in demanding applications. The 250 mm (10 inch) valve is rated for Class 600 LB, making it suitable for high-pressure steam, gas, and hydrocarbon services....
Triple Eccentric Butterfly Valve
API 609 Cryogenic Butterfly Valve, CF8M, 20 IN, CL150, Flanged
This 20-inch (500 mm) triple offset butterfly valve is built from ASTM A351 CF8M stainless steel for low-temperature service. It meets API 609 standards and carries a Class 150 LB pressure rating. The double-flanged end design ensures secure pipeline integration. The triple offset geometry provides...
Triple Eccentric Butterfly Valve
Double Flanged Butterfly Valves, API 609, CF8M, 16 IN, CL600
These high-temperature butterfly valves feature a triple offset design and a double flanged body for secure installation in heavy-duty piping systems. The body is cast from ASTM A351 CF8M stainless steel, which resists corrosion and performs reliably at elevated temperatures. The valve measures 16 inches...
Triple Eccentric Butterfly Valve
High Temperature Butterfly Valves, A351 CF8M, 16 Inch, CL600
High Temperature Butterfly Valves Plant manufactures a 16-inch (400 mm) triple offset butterfly valve built for extreme temperature and pressure service. The body is cast from ASTM A351 CF8M stainless steel, a grade that maintains strength and oxidation resistance at elevated temperatures. It meets...
Triple Eccentric Butterfly Valve
API 609 Wafer Butterfly Valves, A216 WCB, 16 IN, Triple Offset
API 609 Wafer Butterfly Valve is a triple-offset disc valve designed for zero-leakage performance in critical isolation service. This valve features a 400 mm (16 inch) nominal diameter with a Class 150 LB pressure rating. The body is cast from ASTM A216 WCB carbon steel. The triple-offset geometry eliminates...
Triple Eccentric Butterfly Valve
ASTM A351 CF8 Cryogenic Butterfly Valve, 8 IN, CL150, Flanged
The ASTM A351 CF8 Butterfly Valve Manufacturer specializes in producing cryogenic butterfly valves designed for extreme low-temperature applications. These valves feature a triple offset design, which ensures superior sealing performance and reduced wear. Constructed from stainless steel, they offer...
Triple Eccentric Butterfly Valve
ASTM A351 CF3M Cryogenic Butterfly Valve, DN200, PN25, Flanged
The ASTM A351 CF3M Butterfly Valve Factory specializes in producing cryogenic butterfly valves designed for extreme low-temperature applications. These valves feature a triple offset design. Constructed from high-grade stainless steel ASTM A351 CF3M, they offer superior durability and corrosion resistance....
Triple Eccentric Butterfly Valve
Stainless Steel Cryogenic Butterfly Valve, A351 CF3M, 16 IN
The Stainless Steel Butterfly Valve Manufacturer offers a cryogenic butterfly valve designed for extreme low-temperature applications. This valve features a triple offset design, providing exceptional sealing performance. Constructed from high-grade stainless steel ASTM A351 CF3M, it ensures durability...
Triple Eccentric Butterfly Valve
Cryogenic Butterfly Valve, ASTM A216 WCB, CL150 LB, Flanged
The China Cryogenic Butterfly Valve Plant specializes in manufacturing high-quality Triple Offset Butterfly Valves designed for cryogenic applications. These valves feature a carbon steel body made from ASTM A216 WCB material, ensuring durability and reliability in low-temperature environments. Available...
Triple Eccentric Butterfly Valve
Double Flanged Butterfly Valve, API 609, CS, SS, 2-64 Inches
The Double Flanged Butterfly Valve Manufacturer specializes in producing high-performance butterfly valves with a triple eccentric design, adhering to API 609 standards. These valves are constructed from durable materials, including ASTM A216 WCB and various stainless steel grades such as A351 CF8,...
Triple Eccentric Butterfly Valve
Carbon Steel Lug Butterfly Valve, ASTM A216 WCB, 2-64 Inches
The Carbon Steel Lug Butterfly Valve Plant specializes in manufacturing high-quality triple offset butterfly valves with ASTM A216 WCB bodies. These valves are available in sizes ranging from 2 to 64 inches (DN50 to DN1600) and offer pressure ratings from Class 150 to 600 LB. The triple offset design...
Triple Eccentric Butterfly Valve
ASTM A216 WCB Lug Butterfly Valve, API 609, 2-64 IN, Pneumatic
The ASTM A216 WCB Butterfly Valve Manufacturer produces high-performance triple offset butterfly valves, designed to meet API 609 standards. These valves feature a carbon steel body, available in sizes ranging from 2 to 64 inches, and pressure ratings from Class 150 to 600 LB. The triple offset design...
Triple Eccentric Butterfly Valve
Double Flanged Butterfly Valves, A351 CF8, 8 Inch, Pneumatic
The Double Flanged Butterfly Valves Factory produces a robust 200 mm (8 inch) triple offset butterfly valve. This valve features a stainless steel body made from ASTM A351 CF8, ensuring excellent corrosion resistance and durability. With a Class 300 LB pressure rating, it is built to handle high-pressure...
Triple Eccentric Butterfly Valve
Electric Actuated Butterfly Valves, ASTM A351 CF8, DN80, PN16
The Electric Actuated Butterfly Valves Manufacturer offers a high-performance 80 mm (DN80) triple offset butterfly valve. This valve is made from ASTM A351 CF8 cast stainless steel, ensuring durability and corrosion resistance. With a PN16 pressure rating and wafer ends, it is designed for easy installation...
Triple Eccentric Butterfly Valve
Hydraulic Actuated Butterfly Valve, ASTM A351 CF8, 6 IN, 10K
The Hydraulic Actuated Butterfly Valve Factory offers a high-performance 150 mm triple offset butterfly valve, compliant with API 609 standards and made from ASTM A351 CF8 stainless steel. This 6-inch (DN150) valve is designed for a 10K pressure rating and features lug ends for secure installation....
Triple Eccentric Butterfly Valve
ASTM A217 WC9 Butterfly Valve, API 609, DN500, PN40, Flanged
The ASTM A217 WC9 Butterfly Valve Manufacturer specializes in producing high-temperature butterfly valves with triple offset design, adhering to API 609 standards. These valves feature alloy steel bodies, ensuring durability and performance in high-temperature applications. Available in a large size...
Triple Eccentric Butterfly Valve
Triple Offset Butterfly Valve
Triple offset metal sealing butterfly valve uses the three eccentric structure with multi-layer metal seal or pure metal sealing ring, different sealing materials are being used according to the different temperature request from end user.The structure of valve sealing ring that was formed after machining for triple eccentric butterfly valve is oblique cone type, the purpose of which is to let the disc open in a subtle angle and seat sealing surface can be completely separated from the sealing surface of disc, thus to reduce the friction of sealing surface during the open and close.
Triple Offset Frictionless Design
- Offset 1: Offset for seat seal and the rotation center of stem.
- Offset 2: Center of pipe and disc.
- Offset 3: Seat sealing angle center line and flow passage center.
- The triple offset of butterfly valve ensures the valve disc is completely separated from seat sealing surface while open in a slightly angle which could reduce the friction of sealing surface during open and close and opening torque as well as prolong the service life of the sealing surface.
- Our metal sealing butterfly valve adopts multi-layer sealing ring to achieve the valve seal, the multi-layer seal ring is generally made of stainless steel and graphite combination The pure metal sealing can be used for special medium or high temperature.
Seat Structure
- Low Operating Torque: Our butterfly valves combine three offsets. Standard sealing is graphite + metal. Optional PTFE + metal combinations are available for different temperatures and media, using flexible laminated metal and graphite to ensure a tight, uniform seal and reduce operating torque.
- Zero Leakage: Laminated seal rings are self-aligning, allowing the valve to meet zero leakage per API 598.
- Fire-Safe Design: Standard valves are not soft-seated and meet API 607 fire-safe requirements.
- Anti-Blowout Shaft: Double anti-blowout design meets API 609 and ASME B31.1.
- Top Retention: Packing gland follower retains the stem.
- Bottom Retention: T-shaped collar prevents stem blowout.
ISO 5211 Top Mounting
Different End Connections Available:
