Bolted Bonnet Ball Valve, ASTM A216 WCB, 2 IN, 3000 PSI, NPT

Product Name: Bolted Bonnet Ball Valve
Body Material: ASTM A216 WCB
Size: 2 Inch, DN50
Pressure: 3000 PSI
End Connection: NPT
Operation: Lever
Application: Oilfield
NACE: NACE MR0175

This ball valve is specifically designed for oil field applications, featuring a robust construction that ensures reliable performance under high pressure. The valve includes a body and a valve tube, with valve tubes located on both the left and right sides. Its design incorporates a second slide rail within the inner cavity, while the valve rod is equipped with a stable block and a handwheel for efficient manual operation. A limit device within the valve rod enhances operational precision and safety.

Technical Specifications

» Design Pressure: 2500 PSI, 3000 PSI, and 5000 PSI
» Materials:
   ASTM A216 WCB for 2500 and 3000 PSI body
   ASTM A487 4C for 5000 PSI body
» Size Range:
   NPS 2 Inch RP, 2 Inch FP
   NPS 3 Inch FP
» Temperature Range: -20°C to 120°C.
» End Connections:
   ASME B1.20.1 (NPT)
   API 5B LP
» Medium: Suitable for water, oil, and gas applications.

Structural Features

» Back-Seated Stem: Blowout-proof and fire-safe design for enhanced durability and safety.
» External Stem Lubrication: Ensures smooth operation and reduces wear.
» Vented Weather Seal: Protects the valve from external environmental factors.
» Corrosion Resistance: Stainless steel trim provides maximum protection against corrosion.
» Port Configurations: Available in full port (FP) and reduced port (RP) options.
» Pressure Equalization: The ball features a pressure equalization hole to prevent trapped pressure in the body cavity.
» Locking Mechanism: Standard locking handle with a double-locking feature for improved safety and security, particularly for tank valve applications.
» Compliance: Meets NACE MR0175 standards for corrosion resistance in sour gas environments.
» Inspection and Testing: Certified to API 598 standards.

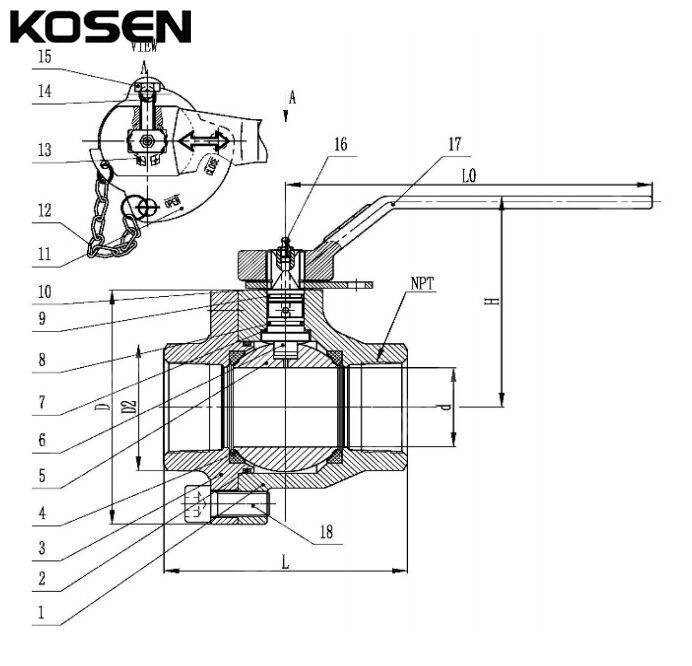

Materials of Main Parts
