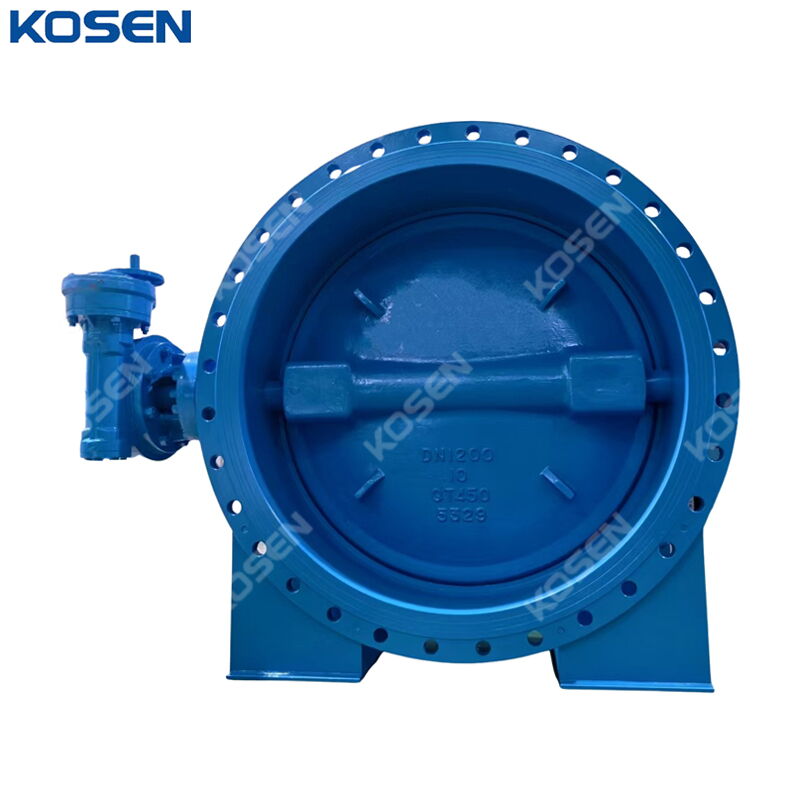

Double Flanged Butterfly Valves, Ductile Iron, DN1200, PN10

Product Name: Double Flanged Butterfly Valves
Type: Triple Offset Butterfly Valve
Body Material: Ductile Iron
Size: DN1200, 1200 mm, 48 Inch
Pressure: PN10, Class 150 LB
End Connection: Flanged
Operation: Gear Operated
Temperature Range: -196°C to 550°C

We offer a comprehensive range of triple eccentric butterfly valves in various pressure classes, body styles, and materials to meet critical process requirements across diverse industries, including hydrocarbon, power, chemical, and fertilizer sectors. The product range includes valves up to ASME class 600, in sizes up to 64" (1600 mm), and in carbon steel, stainless steel, and alloy steels, suitable for temperatures as high as 538°C (1000°F). Valves in higher pressure classes, larger sizes, or alternative materials are also available based on customer requirements, including options for cryogenic services. The metal-seated valves conform to API 609 standards. Triple offset butterfly valves are fully bi-directional and provide high-integrity sealing. All machining operations are performed on advanced 5-axis machining centers, and customized welding machines are employed to ensure precision and quality in the manufacture of these valves.

Technical Specification

» Product: Triple Eccentric Butterfly Valve
» Size Ranges: 2-64 Inch (DN50-DN1600) (Larger sizes upon request)
» Pressure Ratings: Class 150-600 LB (PN10-PN100)
» Body Materials: Carbon Steel (ASTM A216 WCB), Stainless Steel (ASTM A351 CF8, CF8M, CF3, CF3M), Low-Temperature Carbon Steel (ASTM A352 LCB, LCC)
» Shaft Material: 17-4PH, SS410, XM-19
» Seat Material: Fully metal seat, SS + Graphite Seat
» Operation: Handle, Worm gear, Pneumatic, Electric
» Temperature Range:
Metal Seat: -29°C to 425°C
Metal Seat (Cryogenic): -196°C to 121°C
» Ends Connections: Wafer, Lugged, Double Flanged, Butt Weld or Grooved
» Actuations: Manual, Pneumatic, Electric, Hydraulic, Counterweight, Electro-hydraulic

Product Features

» Lockable lever
» On-site maintenance capability
» Easy automation
» Positive, tight shut-off
» Optional top flanges per ISO 5211
» Suitable for both gaseous and liquid services
» Wide selection of body and trim materials for various media
» Compliant with ISO 5752, BS 5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, and DIN 3202
