In modern industrial production, valves, as important equipment for controlling fluids, their importance is self-evident. Whether in petroleum, chemical, food processing, or pharmaceutical industries, valves play an indispensable role. They not only control the flow direction and flow rate of fluids but also play a key role in ensuring production safety and improving production efficiency. And pneumatic ball valves, as a type of efficient, safe, and easy-to-operate valve, due to their unique advantages, have been widely used in many industries. This article will introduce in detail the key points of pneumatic ball valve selection, helping you choose the most suitable pneumatic ball valve among many products.

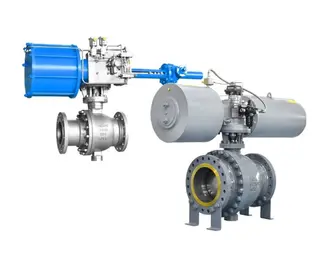

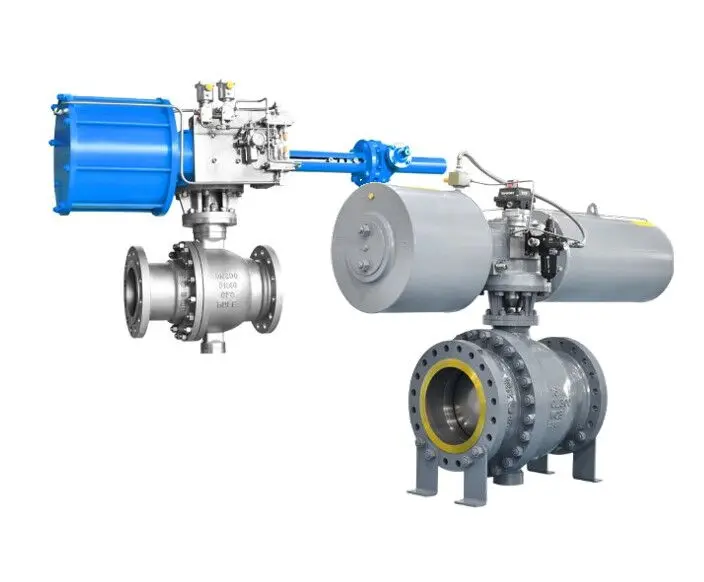

A pneumatic ball valve is a device formed by combining a pneumatic actuator with a valve. It drives the valve’s opening and closing action through air source pressure, making operation very convenient, without the need for personnel to go to hazardous work sites for manual operation. The opening and closing speed of this valve is extremely fast, up to 0.05 seconds per time at the fastest, and is therefore also called a pneumatic quick shut-off ball valve. Pneumatic ball valves are usually equipped with solenoid valves, air source treatment triplets, limit switches, positioners, and control boxes, among other accessories. They can realize local and remote centralized control, greatly saving human resources and time, while also improving operational safety.
Pneumatic ball valves have many significant features, making them an ideal choice for many industrial applications.
The operation of a pneumatic ball valve is very simple. It only requires the control room button or remote control system to realize the valve’s opening and closing. This operation method not only saves manpower but also avoids operators’ direct contact with dangerous environments, improving safety.
The opening and closing speed of pneumatic ball valves is very fast and can complete the opening or closing of the valve in a very short time. This is crucial for industrial processes that require rapid response and can effectively prevent fluid leakage or overflow.
The structural design of pneumatic ball valves is compact, occupying little space, convenient for installation and maintenance. This compact design makes them suitable for various industrial situations with limited space.
The sealing performance of pneumatic ball valves is excellent, effectively preventing fluid leakage. Its sealing surface is specially treated, with good wear resistance and corrosion resistance, and can maintain good sealing performance even under harsh working conditions.
Pneumatic ball valves are suitable for a variety of working media, including water, solvents, acids, natural gas, and other general media, as well as harsh media such as oxygen, hydrogen peroxide, methane, and ethylene. The valve body can be integral or combined, chosen according to different working conditions.
Choosing the right pneumatic ball valve requires comprehensive consideration of multiple factors, including the properties of the medium, working pressure, temperature range, valve type, and material. The following are some specific selection points:
Corrosiveness: If the medium is corrosive, such as acid or alkali, corrosion-resistant lined fluorine material or full-lined polytetrafluoroethylene (PTFE) pneumatic ball valves should be selected. PTFE has excellent corrosion resistance, chemical resistance, and non-aging properties, suitable for corrosive media with temperatures not exceeding 150℃.
Particles: If the medium contains particles that can easily damage the sealing surface, wear-resistant treated pneumatic ball valves can be selected, such as pneumatic lined fluorine ball valves.
Temperature: Choose suitable sealing materials according to the temperature of the medium. For example, soft-sealed pneumatic ball valves are generally suitable for media below 150℃; for media above 150℃, PPL seals or metal seals can be used. PPL (polyphenylene) high-temperature seals can be used continuously at 260℃, with a maximum use temperature of 290–300℃, extremely low friction coefficient, good wear resistance, and excellent chemical stability.
The working pressure range of pneumatic ball valves is wide, and the appropriate pressure rating can be selected according to actual conditions. Common pressure ratings include low pressure, normal pressure, medium pressure, and high pressure. For example, 1.6MPa is a common rating suitable for most industrial applications. When selecting a pneumatic ball valve, it is necessary to ensure that the rated pressure of the valve can meet the system’s working pressure requirements.
Single-acting and double-acting: According to the action form when failure occurs, pneumatic ball valves can be divided into single-acting and double-acting.
Single-acting pneumatic ball valve: When a failure occurs (such as air loss or power loss), the solenoid valve restores the spring position, the air source is cut off, the pneumatic head spring releases compressive force, pushing the piston in the opposite direction, leaving the valve at the set open or closed position, preventing accidents. Suitable for occasions with high safety requirements.
Double-acting pneumatic ball valve: Compressed air first passes through the filter pressure reducing valve to remove water, oil, and dust particles, and adjust the system pressure to the set value. The gas flows into the solenoid valve air inlet, driving the piston to act and realizing valve opening and closing. Suitable for occasions requiring fast switching.
Three-way and straight-through: According to fluid flow direction requirements, pneumatic ball valves can be divided into three-way and straight-through. Three-way pneumatic ball valves are used for fluid diversion, while straight-through pneumatic ball valves are used for linear flow paths, with very small resistance to the medium.
Floating ball valves and fixed ball valves: According to the characteristics of the ball valve, pneumatic ball valves can be divided into floating and fixed types. Floating ball valves are suitable for small diameter and medium-low pressure occasions, while fixed ball valves are suitable for large diameter and high pressure occasions.
The material selection of pneumatic ball valves is crucial to the performance and service life of the valve. Common materials include:
Carbon steel: Suitable for general media such as water and air, with good mechanical properties and corrosion resistance.
Stainless steel: Including 304, 316, and 316L stainless steel. With excellent corrosion resistance and high temperature resistance, suitable for many media.
Ductile iron: With good mechanical properties and corrosion resistance, suitable for medium and low pressure conditions.
Plastic: Suitable for strongly corrosive media such as acids and alkalis.
Sanitary-grade materials: For industries with high sanitary requirements such as food and pharmaceuticals, sanitary pneumatic ball valves can be chosen, with better materials, smooth surfaces, and easy cleaning.
The size of pneumatic ball valves should be chosen according to the size of the pipeline to ensure tight connection. Common connection methods include flange connection, thread connection, etc. Choosing the right size and connection method ensures compatibility of pneumatic ball valves with the system.
In selecting pneumatic ball valves, in addition to considering the above key points, it is also necessary to evaluate product quality. The following are some standards for judging whether pneumatic ball valves are qualified:
Specifications and parameters: Confirm whether the specifications and parameters of the pneumatic ball valve meet project or design requirements, including nominal size, pressure rating, valve body material, etc.
Appearance and manufacturing process: Check carefully the appearance and process. Qualified valves should have no obvious defects such as welding marks, oxidation, cracks. Materials should meet design requirements.
Reliability and performance testing: Test whether the valve opens/closes flexibly, sealing meets requirements, no leakage, pressure resistance qualified.
Quality system and certification: Check if the valve has certifications such as ISO9001, ISO14001. Certified products mean standardized quality and strict control.
Chemical industry: Media often strongly corrosive (acids, alkalis). Choose fully lined PTFE pneumatic ball valves. Select appropriate sealing (soft, PPL, or metal) according to temperature.
Natural gas industry: For conveying and controlling natural gas (flammable and explosive). Stainless steel pneumatic ball valves are suitable, with high safety and sealing requirements. Select size and pressure according to pipeline requirements.
Food industry: High sanitary requirements. Sanitary pneumatic ball valves (usually 316L stainless steel, smooth surface, easy cleaning) are suitable. Choose straight-through or three-way type according to process.
As an efficient, safe, and easy-to-operate valve type, pneumatic ball valves have been widely used in modern industry. Choosing the right pneumatic ball valve requires comprehensive consideration of medium properties, working pressure, temperature range, valve type, and material. At the same time, product quality must be evaluated to ensure parameters meet requirements, good appearance and workmanship, reliable performance, and relevant quality certifications. By following these steps, you can choose the most suitable pneumatic ball valve, providing reliable assurance for your engineering projects.
We hope this article can provide you with valuable reference to help you better choose pneumatic ball valves. If you have other questions or need further assistance, feel free to contact us at any time.
