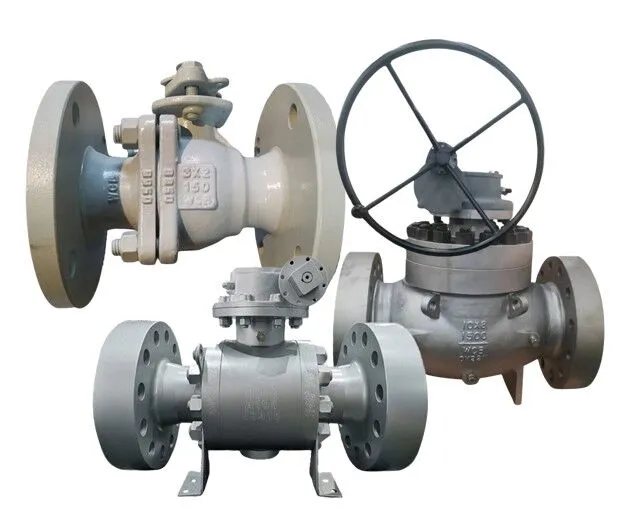

Reduced bore ball valves are specialized valves designed with a smaller internal flow path compared to the nominal pipeline size. These valves offer numerous benefits, including reduced pipeline load, lower flow resistance, and cost savings, making them ideal for low-flow, high-pressure, and space-constrained applications. By reducing flow resistance, these valves enhance system efficiency, ensuring optimal performance while reducing operational costs. While they are particularly suited for applications where fluid delivery is not high, careful consideration should be given to flow balance, filtration, and regulation performance. This article provides an in-depth look at the design, advantages, applications, durability, and usage considerations of reduced bore ball valves, offering valuable insights into their practical use in various pipeline systems.
Reduced bore ball valves are a special type of ball valve with an internal flow path diameter that differs from the nominal diameter of the pipeline. By reducing the flow path diameter, reduced bore ball valves can offer higher economic efficiency and performance in specific applications. This article provides a comprehensive analysis of the design principles, advantages, applicable scenarios, durability, and usage considerations of reduced bore ball valves, helping readers better understand the benefits and practical applications of this equipment.
The internal flow path diameter of a reduced bore ball valve is typically smaller than the nominal diameter of the pipeline. Compared to full bore ball valves, reduced bore ball valves are designed to reduce flow resistance and optimize flow control by narrowing the flow path. Specifically, the actual flow path diameter is usually one standard size smaller than the nominal size. For example, a DN50 reduced bore ball valve has a flow path diameter of approximately 38mm, equivalent to a DN40 ball valve.
In pipeline system design, the application of reduced bore ball valves varies depending on the pipe diameter:
For pipelines with a diameter of DN250 and below, the bore is typically reduced by one size.
For pipelines between DN250 and DN600, the bore is usually reduced by two sizes.
For pipelines above DN600, the bore reduction is designed based on actual requirements.
The design of reduced bore ball valves offers several advantages, particularly in terms of pipeline load, flow control, and cost management. The main advantages are as follows.
Reduced bore ball valves are approximately 30% lighter than full bore ball valves, and their flow resistance is only 1/7 of that of full bore ball valves of the same size. This makes reduced bore ball valves highly suitable for reducing pipeline load, especially in applications where fluid delivery requirements are not high. By using reduced bore ball valves, pressure losses in the pipeline system can be significantly reduced, thereby improving the overall operational efficiency of the system.
Reduced bore ball valves are commonly used for transporting gases or media with physical properties similar to water, offering relatively low flow resistance. When the difference between the valve bore and the pipe end bore is small (usually greater than 80%), the fluid's ability to pass through the valve is almost unaffected. Additionally, reduced bore ball valves can effectively control flow, making them particularly suitable for pipeline systems with low flow requirements.
Due to their simple design and smaller flow path diameter, reduced bore ball valves are generally less expensive than full bore ball valves of the same size. In cost-sensitive projects, especially those requiring a large number of valves in pipeline systems, using reduced bore ball valves can significantly reduce equipment procurement costs. Large-scale use of reduced bore ball valves helps lower pipeline system construction costs while meeting basic fluid control requirements.
Reduced bore ball valves are suitable for various working conditions due to their unique structural design. Some typical application scenarios include:
Reduced bore ball valves are suitable for pipeline systems with low flow requirements or intermittent fluid transport, such as laboratory reagent delivery or small equipment cooling circulation pipelines. These valves not only ensure flow control but also enhance system stability and reliability while reducing costs.
Reduced bore ball valves perform exceptionally well in high-pressure conditions. In high-pressure hydraulic systems or steam pipelines, the pressure on the valve core is relatively low, which improves the valve's sealing performance and service life. By reducing the flow path diameter, the pressure area exerted by the medium on the valve core is minimized, making it easier to achieve a good seal, reducing leakage risks, and ensuring safe system operation.
In environments with limited space, reduced bore ball valves are ideal due to their compact size and streamlined design. For example, in industrial settings with complex pipeline layouts or in fields with strict space requirements such as ships and aerospace, reduced bore ball valves can effectively address space limitations without compromising system functionality.
The design of reduced bore ball valves enhances their durability in multiple ways, particularly in specific working conditions. Their superior wear resistance and low torque design contribute to an extended service life.
Extended Valve Life: The reduced flow path limits the passage of solid particles in the medium, reducing wear on the valve core and seat. This extends the valve's service life, especially in media containing small amounts of solid particles.
Low Torque Design: The reduced torque on the valve stem of reduced bore ball valves helps extend their operational life, particularly in large-diameter valves. Compared to full bore ball valves, reduced bore ball valves are easier to operate, reducing the burden on the valve drive system.
High-Pressure Resistance: In high-pressure conditions, the reduced pressure on the valve core enhances the valve's sealing performance and durability, significantly extending its service life.
Although reduced bore ball valves perform well in many conditions, the following points should be noted during use.
The bore reduction should not be excessive, as it may significantly increase system resistance and affect fluid flow efficiency. The degree of bore reduction should be selected based on actual working conditions to ensure normal system operation.
For media containing large amounts of solid particles, the flow path of reduced bore ball valves is prone to clogging. Therefore, appropriate filtration measures should be taken to ensure proper valve operation.
For regulating valves, prolonged use at low openings may affect their regulation performance and reduce their service life. Therefore, the valve's regulation characteristics should be considered during design to avoid unnecessary bore reduction.
Reduced bore ball valves, as a special type of ball valve, offer advantages such as simple structure, low cost, and strong flow control capabilities. They are widely used in high-pressure, low-flow, and space-constrained environments, particularly in applications requiring reduced pipeline load and cost savings. By selecting reduced bore ball valves appropriately, system functionality can be maintained while maximizing cost efficiency. In practical applications, the degree of bore reduction should be chosen based on working conditions, and proper maintenance measures should be taken to extend the valve's service life.
