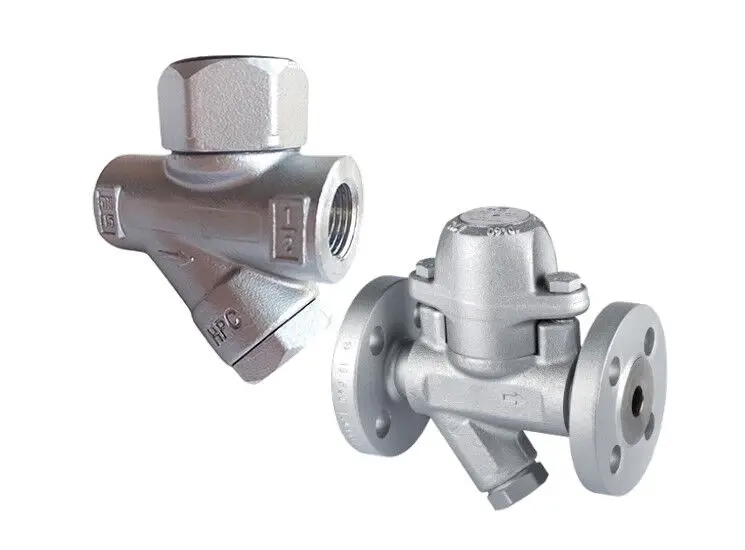

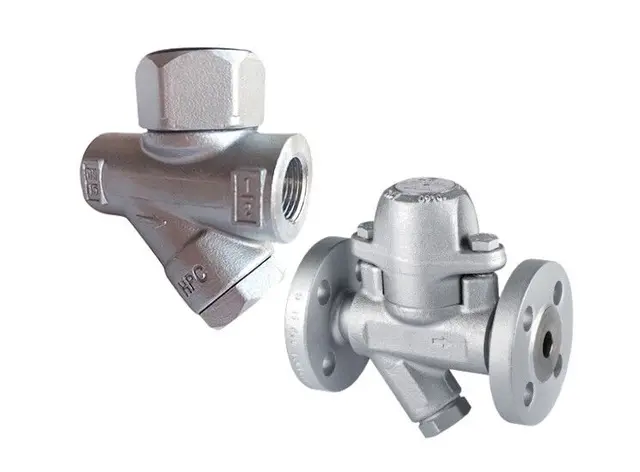

In modern industrial production, steam systems play an indispensable role. Whether in the heating equipment of large factories or the steam pipelines of small enterprises, the efficient use of steam is directly related to production efficiency and energy costs. As a key component in steam systems, the importance of steam traps is self-evident. Today, we will take an in-depth look at two common types of steam traps: thermostatic and thermodynamic, understanding their working principles, features, and application scenarios.
Thermostatic steam traps, with their unique temperature-sensitive characteristics, have become leaders in the field of energy saving. These traps can accurately control valve opening and closing according to temperature changes, achieving efficient condensate discharge and steam energy saving, making them true energy-saving guardians of industrial steam systems.

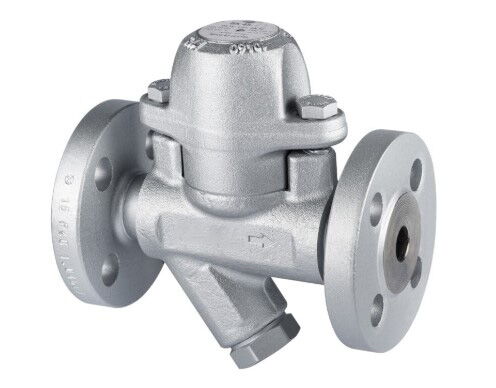

A thermostatic steam trap is a device that operates based on the temperature difference between steam and condensate. Its core component is a temperature-sensing element, usually a bimetallic strip, bellows, or capsule. These elements are highly sensitive to temperature changes. When steam and condensate pass through the trap, the temperature difference causes the sensing element to deform or expand, thereby driving the valve to open or close.
Specifically, when the condensate temperature is low, the sensing element is in a contracted state, and the valve remains open to allow condensate discharge. As the condensate temperature rises, the sensing element gradually expands, pushing the valve to close, preventing steam leakage. This automatic control mechanism based on temperature changes allows the thermostatic trap to efficiently separate steam from condensate while minimizing steam loss.
One of the main features of thermostatic traps is their large subcooling degree. Subcooling refers to the temperature range over which condensate must cool before discharge. The subcooling of thermostatic steam traps is usually between 15°C and 40°C. This means that the valve will only open when the condensate temperature is below the steam saturation temperature by a certain range. This design allows the trap to fully utilize the sensible heat in condensate, improving energy efficiency.
In addition, thermostatic traps perform excellently in energy saving. Due to their design, high-temperature condensate is always present before the valve, ensuring no steam leakage. This not only reduces energy waste but also lowers production costs. At the same time, the air venting performance of thermostatic traps is excellent, quickly expelling air from the system and ensuring normal operation of the steam system.
Thermostatic traps come in various structural forms, including capsule type, bellows type, and bimetallic type, each with its own unique features and advantages.
The main actuating element of the capsule-type trap is a metal capsule filled with a liquid that vaporizes at a temperature lower than the saturation temperature of water. This trap reacts quickly, is frost-resistant, compact, overheat-resistant, and can be installed flexibly. Its backpressure tolerance is over 80%, it effectively discharges non-condensable gases, has a long service life, and is easy to maintain.
At startup, low-temperature condensate in the pipeline keeps the liquid in the capsule condensed, and the valve remains open. As the condensate temperature rises, the liquid in the capsule vaporizes, increasing pressure and pushing the diaphragm to move the valve toward closing. Before the condensate reaches saturation temperature, the trap begins to close, achieving the function of blocking steam while discharging condensate.
The valve core of the bellows-type trap is a stainless steel bellows filled with a liquid that vaporizes at a temperature lower than the water saturation temperature. This trap allows adjustment of operating temperature, typically with a subcooling range of 15°C to 40°C. It is frost-resistant, compact, flexible in installation, can discharge non-condensable gases, has a long service life, and is durable.
At startup, the liquid inside the bellows is condensed, and the valve core remains open under spring tension. As condensate temperature rises, the liquid inside the bellows vaporizes and expands, increasing internal pressure and pushing the valve core toward closing. Before the condensate reaches saturation temperature, the trap begins to close, achieving the function of blocking steam while discharging condensate.
The main component of a bimetallic trap is a bimetallic sensing element. This trap allows adjustment of operating temperature, typically with a subcooling range of 15°C to 30°C. It is frost-resistant, compact, water hammer-resistant, high-pressure tolerant, and flexible in installation. However, the bimetallic element has certain fatigue properties and requires periodic adjustment.
At startup, the bimetallic strip is flat, and the valve core remains open under spring tension. As condensate temperature rises, the bimetallic strip bends, pushing the valve core toward closing. Before the condensate reaches saturation temperature, the trap begins to close, achieving the function of blocking steam while discharging condensate.
Thermostatic steam traps are widely used in various industrial scenarios. They are especially suitable for steam pipelines, trace-heated lines, small heating equipment, and heating devices. These applications usually have moderate temperature requirements but need efficient condensate discharge and good energy-saving performance.

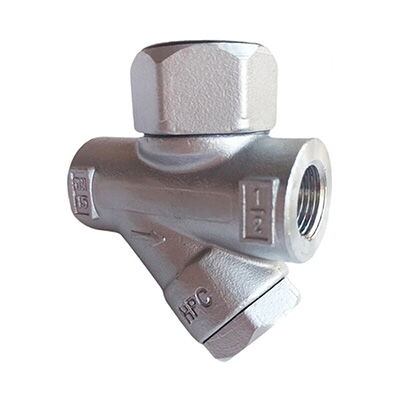

Unlike thermostatic traps that operate based on temperature sensing, thermodynamic steam traps rely on a unique dynamic mechanism, demonstrating excellent performance in condensate discharge efficiency. This trap uses the dynamic difference generated when steam and condensate pass through to drive valve operation, allowing instant response and rapid condensate removal. It ensures high-efficiency operation of steam systems and is an ideal choice for industrial scenarios requiring rapid condensate discharge, making it a powerful source for efficient condensate removal.
The working principle of thermodynamic traps is completely different from thermostatic traps. They rely on the pressure difference generated by different flow velocities of steam and condensate through the valve element to drive opening and closing. When condensate enters a lower-pressure zone, secondary evaporation occurs, generating viscosity and density different from steam, driving the valve element.
The trap has a pressure-buffering chamber. When steam and condensate near saturation temperature flow into the chamber, the pressure of steam or that generated by secondary evaporation closes the trap, stopping condensate discharge. When the chamber cools naturally or due to condensate inflow, steam condenses, forming low pressure, and the trap reopens.
Thermodynamic traps are compact, small in volume, and lightweight. They are suitable for a wide pressure range, have strong water hammer resistance, operate quickly, are frost-resistant, and easy to maintain. However, a notable drawback is steam leakage. Due to their operating principle, thermodynamic traps inevitably discharge some steam while discharging condensate, resulting in greater steam loss.
Thermodynamic traps include disc type, impulse type, and orifice type. The disc type utilizes pipeline steam to insulate the main steam chamber and is a trap designed for high-pressure superheated steam. It is compact, simple in principle, reliable in operation, and widely used both domestically and internationally.
The disc trap uses the dynamic and static pressure difference generated by the different flow velocities of liquid and gas at the same pressure to drive the disc valve. It is compact, simple, reliable, and has good closing force, preventing condensate backflow and ensuring maximum efficiency.
At valve startup, the pressure of steam or water in the pipeline lifts the disc, and condensate and steam are discharged through the inner seat under the disc. This design causes some steam to escape along with the condensate, resulting in steam loss. However, the disc trap’s simplicity and easy maintenance make it suitable for high-pressure and superheated steam environments.
The impulse trap has two orifices, adjusting valve opening according to steam pressure drop. Even when fully closed, the inlet and outlet remain connected through two small holes, never fully shutting, causing continuous steam leakage.
The advantage of the impulse trap is its simple structure and fast response to steam pressure changes. However, due to its design, steam loss is significant. Therefore, when selecting an impulse trap, its pros and cons should be weighed according to the specific application.
Thermodynamic traps are suitable for industrial scenarios requiring rapid condensate discharge and water hammer resistance. They are widely used in steam pipelines, heating equipment, and high-pressure superheated steam systems. Despite steam loss, their simplicity and easy maintenance make them an ideal choice in certain scenarios.
When selecting a steam trap, multiple factors need to be considered, including working principle, features, application scenarios, and maintenance costs. Thermostatic and thermodynamic traps have their own advantages and disadvantages, suitable for different industrial situations.
The main advantage of thermostatic steam traps is significant energy-saving. Due to their large subcooling, they fully utilize condensate’s sensible heat, reducing steam waste. Their air venting performance is excellent, ensuring normal operation of steam systems. Additionally, thermostatic traps come in capsule, bellows, and bimetallic types, allowing selection according to specific needs.
The main advantage of thermodynamic steam traps is their compact structure, small size, and light weight. They suit a wide pressure range, have strong water hammer resistance, quick operation, frost resistance, and easy maintenance. Despite steam loss, their simple structure and easy maintenance make them ideal in certain scenarios.
Selection should be based on the application and requirements. If temperature control is moderate but efficient condensate discharge and energy saving are needed, thermostatic traps are ideal. If rapid condensate discharge and water hammer resistance are required, thermodynamic traps may be more suitable.
Maintenance cost and service life should also be considered. Thermostatic traps have long service life and low maintenance costs, while thermodynamic traps, though simple, have frequent valve operation, shorter service life, and higher maintenance costs.
Steam traps play a crucial role in industrial production. Thermostatic and thermodynamic traps have different strengths and are suited for different scenarios. Thermostatic traps, with energy-saving efficiency, excellent air venting, and long service life, are widely used in steam pipelines, trace-heated lines, small heating equipment, and heating systems. Thermodynamic traps, with compact structure, small size, light weight, and strong water hammer resistance, are suitable for applications requiring rapid condensate discharge and water hammer resistance.
When selecting a steam trap, the working principle, features, application, and maintenance costs must be comprehensively considered. Choosing the right trap according to specific needs ensures efficient steam system operation, reduces energy waste, and improves production efficiency. This article aims to help you better understand steam traps and provide strong support for your industrial production.
