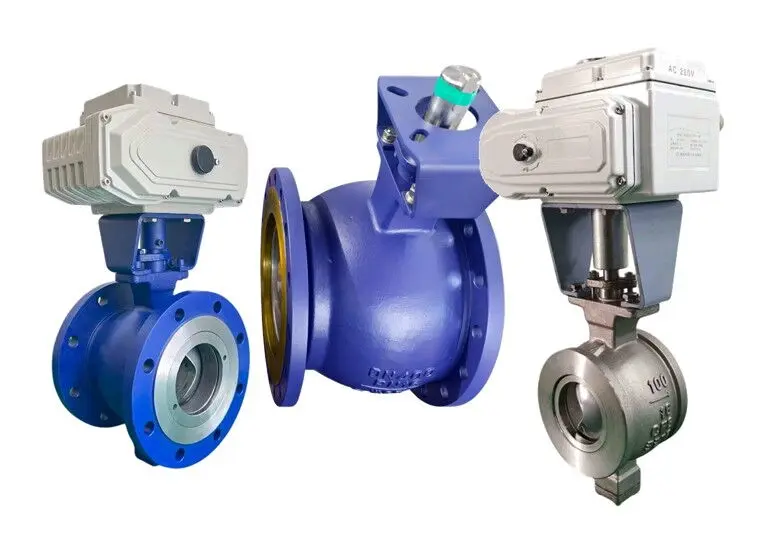

In the industrial field, fluid control is a crucial task. Whether it is water, oil, gas, or other various media, precise control and regulation are required to ensure the smooth progress and safe operation of the production process. The eccentric segmented ball valve, as a high-performance fluid control device, stands out among numerous application scenarios due to its unique working principle and excellent performance characteristics. It has become the first choice for many engineers and operators. This article will delve into the working principle, structural features, classification, and application scope of the eccentric segmented ball valve, as well as how to optimize its erosion resistance, helping readers to fully understand this efficient and reliable industrial valve.
The core component of the eccentric segmented ball valve is the segmented ball core. Its working principle is relatively simple and intuitive: the flow and pressure of the fluid are controlled by rotating the segmented ball core. When the segmented ball core rotates, the fluid flows into the interior of the segmented ball core from the valve inlet and then exits through the outlet of the segmented ball core. The rotation angle of the segmented ball core determines the flow and pressure of the fluid. Therefore, operators can easily control and regulate the fluid by precisely controlling the rotation angle of the segmented ball core.
The valve body of the eccentric segmented ball valve usually adopts a spherical structure, with one side being hemispherical and the other side being circular. The hemispherical side serves as the valve inlet, while the circular side serves as the valve outlet. This unique structural design allows the eccentric segmented ball valve to effectively reduce resistance and increase flow capacity when the fluid passes through. Compared with single-seat or double-seat valves of the same caliber, the eccentric segmented ball valve has a greater flow capacity, while its weight is only about one-third of theirs. This lightweight design not only facilitates installation and maintenance but also reduces production costs to a certain extent.
The structural features of the eccentric segmented ball valve make it stand out among many valves. Its ingenious design not only ensures the efficient operation of the valve but also enhances its durability and reliability. Here is a detailed introduction to its key structural features.
The segmented ball core is the core component of the eccentric segmented ball valve, and its shape is similar to a hemispherical bowl. One side of the segmented ball core is convex, while the other side is concave. The convex side corresponds to the hemispherical side of the valve body, and the concave side corresponds to the circular side of the valve body. This design allows the segmented ball core to fit tightly with the valve body during rotation, achieving good sealing effect.
The actuation mechanism of the eccentric segmented ball valve usually comes in three forms: manual, electric, and pneumatic. The manual actuation mechanism typically uses a handwheel or handle, which is simple to operate and suitable for occasions that do not require frequent operation. The electric actuation mechanism uses a motor and reducer, which can achieve precise control and automated operation, suitable for occasions with high control accuracy requirements. The pneumatic actuation mechanism uses a pneumatic actuator, which has the characteristics of fast response and sensitive action, suitable for occasions requiring quick opening and closing.
The sealing structure of the eccentric segmented ball valve usually adopts soft sealing or metal sealing. Soft sealing generally uses materials such as rubber or polytetrafluoroethylene (PTFE), which have good sealing performance and are suitable for occasions with high sealing requirements. Metal sealing usually uses materials such as stainless steel or titanium alloy, which have higher temperature and corrosion resistance, suitable for harsh working environments.
Thanks to its unique structural design and advanced manufacturing process, the eccentric segmented ball valve exhibits many significant performance advantages. These advantages make it perform well in various industrial applications and become the first choice for many users.
The flow path of the eccentric segmented ball valve is simple, resulting in low resistance. Compared with single-seat or double-seat valves of the same caliber, it has a greater flow capacity. This means that under the same pipe size and pressure conditions, the eccentric segmented ball valve allows more fluid to pass through, thereby improving the overall efficiency of the system. For example, in oil transportation pipelines, using eccentric segmented ball valves can reduce the diameter of the pipeline, lowering construction and operating costs.
The eccentric segmented ball valve uses rotational motion, which improves the packing gland seal and also has a large output force. Therefore, the valve has a small leakage rate, high rigidity, and can work reliably under the rated pressure difference. When the valve core rotates to the closed position, the valve core and the seat sealing ring will produce an automatic overlapping effect, allowing the sealing surfaces to fit more reasonably. The special seat sealing ring design can automatically center, self-align, and dynamically align with the valve core, which can extend service life. This design enables the eccentric segmented ball valve to maintain good sealing performance over long-term use, reducing the risk of leakage.
The erosion resistance of the eccentric segmented ball valve mainly depends on its structural design, material selection, and working conditions. The eccentric segmented ball valve uses an eccentric ball design (such as single eccentric, double eccentric, or triple eccentric). The ball and the seat are not completely concentric, reducing friction and wear risk during opening and closing. This design effectively reduces the direct erosion of the medium on the sealing surface, especially under high-pressure difference and high-flow velocity conditions. For example, in the single eccentric design, the valve stem axis deviates from the center of the ball, reducing friction during opening and closing; in the double eccentric design, both the valve stem and the ball axis deviate, further reducing wear; in the triple eccentric design, the seat sealing surface is inclined to achieve zero-friction opening and closing, providing the best erosion resistance.
The valve body and ball materials usually use high-strength corrosion-resistant materials, such as stainless steel (304, 316), duplex steel (2205), or hardened alloy (such as Stellite alloy cladding), to resist erosion by particulate media. The sealing material uses PTFE, PEEK (polyetheretherketone), or metal hard sealing (such as tungsten carbide), suitable for high-temperature, high-pressure, or solid-containing media. In addition, surface hardening treatments for the ball and seat sealing surfaces, such as spraying, plating (such as chromium carbide, nitriding), or laser cladding, can further increase surface hardness and enhance erosion resistance. An optimized flow path design with a smooth flow path structure reduces turbulence and local high-speed erosion, also helping to improve the valve's erosion resistance. Installing wear-resistant liners (such as ceramic lining) inside the valve body can protect non-sealing areas and extend the service life of the valve.
A significant feature of the eccentric segmented ball valve is its ability to be inspected and maintained online. After the working system is depressurized, the valve can be inspected and maintained online. During maintenance, only the valve cover needs to be opened to lift out the ball crown and support body without removing the entire valve from the pipeline. This design greatly improves the convenience of maintenance, reduces downtime, and increases production efficiency. For example, in chemical production, if the valve fails, operators can perform maintenance without stopping production, thus avoiding production losses caused by equipment downtime.
To further improve the erosion resistance of the eccentric segmented ball valve, the following aspects can be considered:
Adopting more advanced eccentric ball designs, such as triple eccentric design, can achieve zero-friction opening and closing, minimizing the direct erosion of the medium on the sealing surface. In addition, optimizing the structure of the valve body and core to make them more compact and robust can also enhance the valve's erosion resistance.
Selecting higher strength and more corrosion-resistant materials for the valve body and core, such as duplex steel or hardened alloy, can effectively resist erosion by particulate media. At the same time, choosing suitable sealing materials, such as PTFE, PEEK, or metal hard sealing, can improve the valve's sealing performance and erosion resistance.
Performing surface hardening treatments on the ball and seat sealing surfaces, such as spraying, plating, or laser cladding, can significantly increase surface hardness and enhance erosion resistance. In addition, surface treatments inside the valve body, such as installing wear-resistant liners, can protect non-sealing areas and extend the service life of the valve.
Designing a smooth flow path structure to reduce turbulence and local high-speed erosion can effectively reduce the erosion force of the medium on the valve. By using computer simulation and experimental verification to optimize the design parameters of the flow path, making it more in line with fluid mechanics principles, the valve's erosion resistance can be improved.
As an efficient and reliable fluid control device, the eccentric segmented ball valve has a broad application prospect in the industrial field. Its unique working principle and excellent performance characteristics make it stand out among many types of valves. By optimizing structural design, material selection, surface treatment, and flow path design, the erosion resistance of the eccentric segmented ball valve can be further improved, extending its service life. When selecting an eccentric segmented ball valve, the appropriate type and specification should be chosen based on specific working conditions and requirements to ensure that the valve maintains good performance during long-term use. With the continuous progress and innovation of technology, the eccentric segmented ball valve will play an important role in more industrial fields, providing a strong guarantee for the safe and efficient operation of industrial production.
