In modern industrial production, steam systems play a vital role. Whether in the petroleum, chemical, power, textile dyeing, or medical industries, steam serves as an efficient carrier of thermal energy, providing power and heat for various equipment. However, during operation, steam systems generate a significant amount of condensate. If not promptly drained, this condensate can not only reduce the thermal efficiency of equipment but also cause damage. Therefore, the emergence of steam traps has provided a key solution to this problem. Among them, the inverted bucket steam trap stands out with its superior performance and reliability, becoming the preferred choice for many industrial applications.

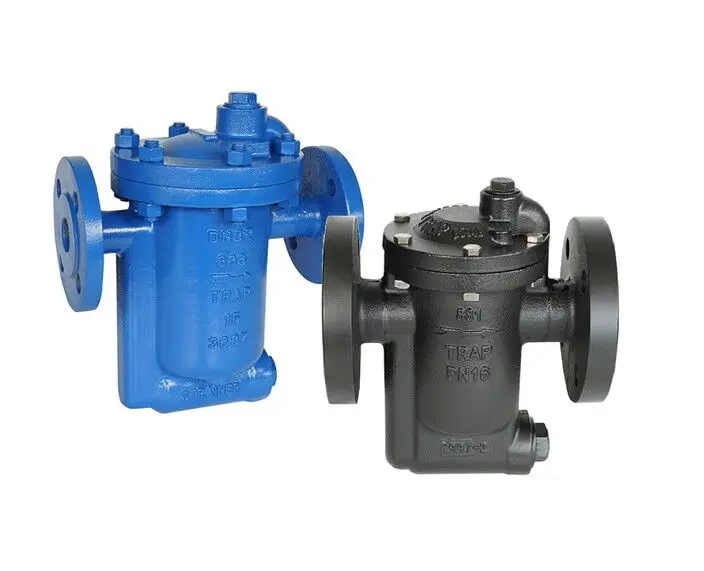

The structural design of the inverted bucket steam trap is simple yet ingenious. It features only one moving part, a semi-floating ball bucket with an opening facing downward. This bucket serves as both the opening and closing element and the sealing element. When the steam system is initially started, air and low-temperature condensate in the pipeline enter the steam trap through the inlet pipe. At this point, the bimetallic strip venting element inside the trap will push the bucket open, and the valve will open accordingly, allowing air and low-temperature condensate to be quickly drained. This process is not only rapid but also efficient, enabling the system temperature to rise swiftly.
As steam enters the inverted bucket, it generates an upward buoyant force. This buoyancy acts through a lever system to move the valve core and close the valve. There is a small hole on the inverted bucket, which plays a crucial role. It not only automatically vents air but also allows some steam to escape through the hole and condense into water. When the inverted bucket loses its buoyancy, it sinks, once again actuating the lever system to open the valve. This cycle repeats, achieving intermittent drainage. This intermittent drainage method not only effectively prevents steam leakage but also ensures that no condensate accumulates inside the equipment, thereby achieving high thermal efficiency.
The inverted bucket steam trap stands out among many steam traps due to the following significant advantages.
The inverted bucket steam trap can continuously or intermittently discharge saturated condensate, ensuring that no condensate accumulates inside the heating equipment. This efficient drainage method allows the equipment to always maintain its optimal working condition, thus achieving high thermal efficiency. According to relevant data, steam systems using inverted bucket steam traps can improve their thermal efficiency by more than 15% compared to traditional systems. This means that with the same amount of steam input, the equipment can generate more heat, thereby saving a significant amount of energy costs.
The water hammer resistance design of the inverted bucket steam trap is one of its highlights. Water hammer is a common problem in steam systems that can cause serious damage to equipment. However, the open-ended bucket design of the inverted bucket steam trap can effectively resist water hammer. In addition, its internal parts are made of stainless steel, which has strong corrosion and wear resistance. These designs significantly extend the service life of the inverted bucket steam trap, reducing the costs of equipment maintenance and replacement.
The air venting performance of the inverted bucket steam trap is outstanding. The overflow vent hole on the inverted bucket can effectively prevent steam lock and air blockage. In steam systems, the presence of air can reduce thermal efficiency and lead to unstable equipment operation. The inverted bucket steam trap can automatically and continuously vent air and non-condensable gases such as carbon dioxide, ensuring that the system always maintains a good steam environment. This excellent air venting performance not only improves the system's thermal efficiency but also extends the service life of the equipment.
The high backpressure adaptability of the inverted bucket steam trap allows it to operate stably under various complex working conditions. Its backpressure rate is as high as 85%, which means that even under high backpressure conditions, the steam trap can still work normally without problems such as poor drainage or steam leakage. This feature gives the inverted bucket steam trap a broad application prospect in high-pressure steam systems.
The maintenance of the inverted bucket steam trap is very convenient. Its internal parts are all installed on the valve cover and are equipped with a filter mesh device. This design makes daily maintenance simple and quick. Users can easily replace the filter mesh and clean internal impurities to ensure that the steam trap always maintains good working conditions. In addition, due to its simple internal structure without complex connections and fixed points, there will be no problems such as jamming and blockage, further reducing maintenance costs.
The inverted bucket steam trap is widely used in various steam heating equipment, steam networks, and low-superheat steam conditions in the petroleum, chemical, power, textile dyeing, medical, and pharmaceutical industries. In these fields, the inverted bucket steam trap can quickly drain condensate and effectively prevent steam leakage, ensuring the normal operation of equipment.
In the petroleum and chemical industries, the inverted bucket steam trap is widely used in steam heaters, steam pipelines, and steam heat exchangers. These pieces of equipment generate a large amount of condensate during operation. If not drained in time, it can lead to reduced equipment efficiency and even damage. The inverted bucket steam trap can effectively solve this problem and ensure the efficient operation of the equipment.
In the power industry, the inverted bucket steam trap is used in steam turbines and boilers. These pieces of equipment have very high requirements for steam quality and pressure. The inverted bucket steam trap can ensure that there is no condensate and air in the steam system, thereby improving the operating efficiency and safety of the equipment.
In the textile dyeing industry, the inverted bucket steam trap is used in steam setting machines and steam drying cylinders. These pieces of equipment require a large amount of steam to process textiles. The inverted bucket steam trap can ensure the efficient operation of the steam system and improve product quality.
In the medical and pharmaceutical industries, the inverted bucket steam trap is used in steam sterilizers and steam heaters. These pieces of equipment have extremely high requirements for steam purity and pressure. The inverted bucket steam trap can ensure that there is no condensate and air in the steam system, thereby improving the operating efficiency and safety of the equipment.
Although the inverted bucket steam trap is highly durable and reliable, regular maintenance and care are still essential. Here are some suggestions for maintenance and care.
Regularly inspecting the working condition of the steam trap is crucial. Users can judge whether it is working properly by observing the drainage and steam leakage of the steam trap. If poor drainage or steam leakage is detected, prompt inspection and repair should be carried out.
The inverted bucket steam trap is equipped with a filter mesh device inside to filter impurities from the condensate. Regular cleaning of the filter mesh can prevent blockages caused by impurities and ensure the normal operation of the steam trap. It is generally recommended to clean the filter mesh every three months.
Sealing elements are an important part of the steam trap, and their sealing performance directly affects the working effect of the steam trap. Regularly inspect the wear of the sealing elements, and if severe wear is found, they should be replaced promptly to ensure the sealing performance of the steam trap.
The inverted bucket steam trap has few moving parts, but the normal operation of these parts is crucial for the working of the steam trap. Regularly inspect the wear and flexibility of the moving parts, and if any abnormalities are found, prompt repair or replacement should be carried out.
The inverted bucket steam trap, with its advantages of energy efficiency, durability, excellent air venting performance, high backpressure adaptability, and easy maintenance, has been widely used in industrial steam systems. It not only improves the thermal efficiency of equipment and reduces energy costs but also extends the service life of equipment and reduces maintenance costs. When selecting a steam trap, users should choose the appropriate model and specification based on specific working conditions and requirements. At the same time, regular maintenance and care are the keys to ensuring the normal operation of the steam trap. Only in this way can the advantages of the inverted bucket steam trap be fully utilized to provide an efficient and reliable steam system solution for industrial production.
