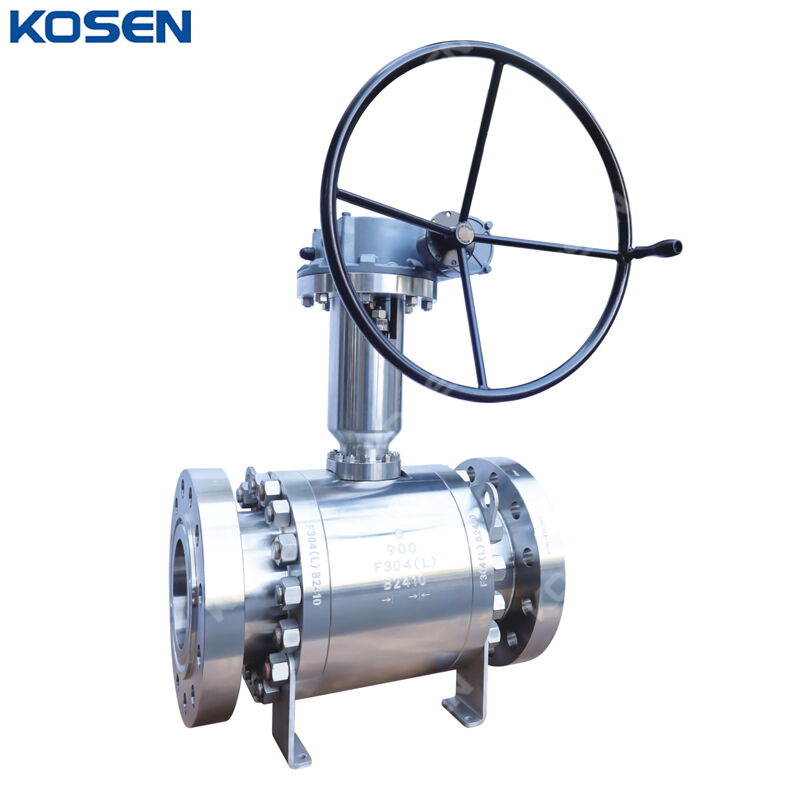

Metal Seal Cryogenic Ball Valve, A182 F304L, 6 Inch, 900 LB

Product Name: Cryogenic Ball Valve, Metal Seal
Type: Trunnion Mounted Ball Valve
Body Material: ASTM A182 F304L, Stainless Steel
Size: 6 Inch, DN150, 150 mm
Pressure: Class 900 LB, PN150
End Connection: RTJ Flanged
Operation: Gearbox

Trunnion-mounted ball valves allow easy and smooth operation even under high line pressure. Precisely aligned bearings ensure low operating torque, while the ball remains fixed in position but free to rotate. All cast trunnion ball valves feature reliable, high-quality castings and fire-safe designs certified to BS 6755, API 607, and API 6FA. They meet all applicable ASME standards. Cast steel trunnion ball valves produced by Vatac are available in two-piece split-body and three-piece bolted-body configurations. They are designed and manufactured in accordance with the latest international standards, including API 6D, ASME B16.34, BS 5351, or equivalent specifications. Standard features include fire-safe construction, anti-static design, and a blowout-proof stem.

Technical Specification

» Product: Trunnion Mounted Ball Valve
» Size Ranges: NPS 2–48 Inch (DN50–DN1200)
» Temperature Range: -46°C to 120°C
» Design Pressure: Class 150–2500 LB (PN10–PN420)
» Materials: Cast Carbon Steel, Stainless Steel, Duplex, or Other Specials
» Trim Materials: 13%Cr, SS 304, SS 304L, SS 316, SS 316L, and other specials
» Seat Materials: RPTFE, DEVLON, PEEK
» End Connections: Flanged RF, RTJ, Welded
» Operation: Handle, Worm Gear, Electric, Pneumatic
» Design and Manufacture: API 6D, BS 5351, ASME B16.34
» Face to Face (End to End): ASME B16.10
» Flanged Connection: ASME B16.5, ASME B16.47
» Test and Inspection: API 598, API 6D
» Butt Welded End: ASME B16.25
» Fire Safety: API 607, API 6A

Product Features

» Double Block and Bleed (DBB)
» Low operating torque
» Emergency sealing device
» Fireproof structure design
» Anti-static structure
» Reliable seat-sealing structure
» Single sealing (automatic pressure relief in the valve’s middle cavity)
» Double sealing (double-piston effect)
» Safety relief device
» Special structure for automatic upstream pressure relief
» Blowout-proof stem
» Corrosion resistance and sulfide stress resistance
» Optional locking device or stem extension
» Optional direct mounting to ISO 5211
» Full port or reduced bore
