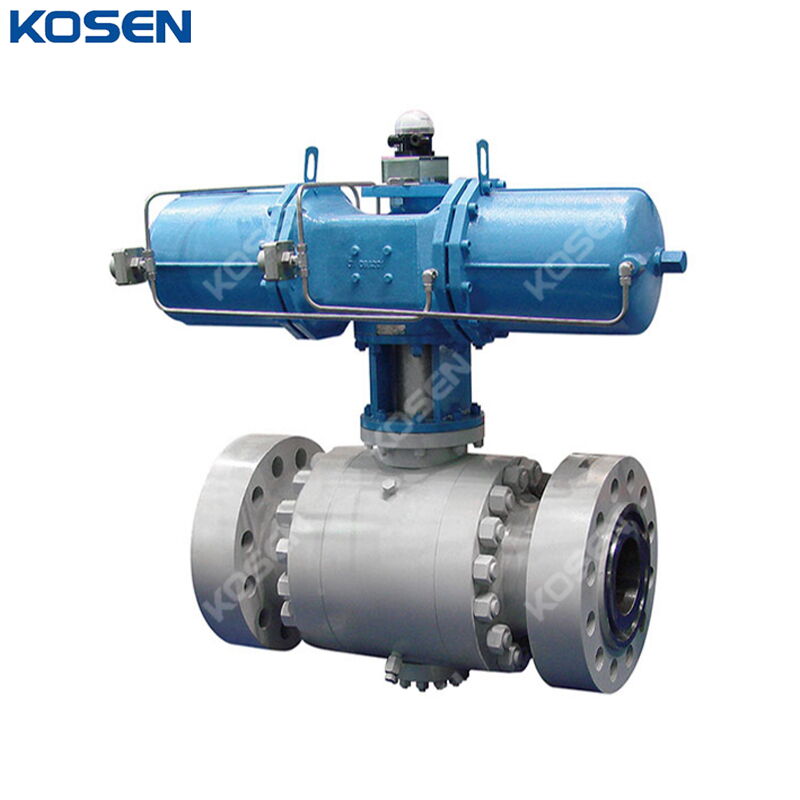

Pneumatic Actuated Ball Valves, ASTM A105N, 2-48 Inches, RTJ

Product Name: Pneumatic Actuated Ball Valves
Type: Trunnion Mounted Ball Valve
Body Material: Carbon Steel ASTM A105N
Size Range: NPS 2-48 Inch, Customized
Design Pressure: Class 150-2500 LB, Customized
Ends Connections: RTJ Flanged
Operation: Pneumatic Actuator
Medium: Water, Gas, Oil, etc
Temperature Range: -46°C to 120°C

Trunnion-mounted ball valves are designed to provide easy and smooth operation under high line pressure. Precisely aligned bearings help minimize operating torque, ensuring reliable and efficient performance. In this design, the ball is securely fixed in position while remaining free to rotate. All cast trunnion ball valves feature high-quality, reliable castings and a fire-safe design certified in accordance with BS 6755, API 607, and API 6FA, and comply with all applicable ASME standards. Cast steel trunnion-mounted ball valves are available in two-piece split body and three-piece bolted body constructions. These valves are designed and manufactured in compliance with the latest international standards, including API 6D, ASME B16.34, and BS 5351, or equivalent specifications. Standard features include fire-safe construction, anti-static design, and blowout-proof stems, ensuring safe and dependable operation in demanding service conditions.

Technical Specification

» Product: Trunnion Mounted Ball Valve
» Size Ranges: NPS 2–48 Inch (DN50–DN1200)
» Temperature Range: -46°C to 120°C
» Design Pressure: Class 150–2500 LB (PN10–PN420)
» Materials: Cast Carbon Steel, Stainless Steel, Duplex, or Other Specials
» Trim Materials: 13%Cr, SS 304, SS 304L, SS 316, SS 316L, and other specials
» Seat Materials: RPTFE, DEVLON, PEEK
» End Connections: Flanged RF, RTJ, Welded
» Operation: Handle, Worm Gear, Electric, Pneumatic
» Design and Manufacture: API 6D, BS 5351, ASME B16.34
» Face to Face (End to End): ASME B16.10
» Flanged Connection: ASME B16.5, ASME B16.47
» Test and Inspection: API 598, API 6D
» Butt Welded End: ASME B16.25
» Fire Safety: API 607, API 6A

Product Features

» Double Block and Bleed (DBB)
» Low Operating Torque
» Emergency Sealing Device
» Fireproof Structural Design
» Anti-Static Design
» Reliable Seat Sealing Structure
» Single Sealing (Automatic Pressure Relief in the Valve Middle Cavity)
» Double Sealing (Double Piston Effect)
» Safety Relief Device
» Special Automatic Pressure Relief Structure Toward the Upstream Side
» Blowout-Proof Stem
» Corrosion Resistance and Sulfide Stress Cracking (SSC) Resistance
» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Full Port or Reduced Bore
