PTFE Lined Plug Valve, API 6D, ASTM A216 WCB, DN50, PN16, RF

Product Name: PTFE Lined Plug Valve
Design Standard: API 6D
Body Material: ASTM A216 WCB
Size: DN50, 2 Inch
Pressure: PN16, Class 150 LB
End Connection: RF Flanged

Teflon-Lined Plug Valves are available in two types: fully lined and semi-lined (bushing stopcock). These valves are primarily used for shutting off medium flow and can also facilitate medium distribution in three-way configurations. Designed for superior corrosion resistance, the fluorine-lined valves are suitable for handling various concentrations of water, sulfuric acid, hydrochloric acid, hydrofluoric acid, organic acids, strong acids, and strong oxidizing agents within a temperature range of -29°C to +180°C. The FEP lining further enhances compatibility with strong alkaline organic solvents, corrosive gases, and liquid media, ensuring reliable performance in demanding chemical applications.

Technical Specification

» Product: Teflon Lined Plug Valve
» Nominal Diameter: 1/2-14 Inch (DN15-DN350)
» Normal Pressure Rating: PN10-PN16, Class 150-300 LB
» Body Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
» Lining Material: PTFE, PFA, PO, FEP
» Operation Method: Manual, Worm Gear, Electric, Pneumatic Actuator
» Temperature Range: -29°C to +180°C
» Applicable Media: Sulfuric Acid, Hydrochloric Acid, Hydrofluoric Acid, Various Organic Acids, Strong Acids, Strong Oxidizing Agents, Acid, Alkali, aqua regia, etc.

Standards Compliance

» Design and Manufacture: API 6D, HG/T 3704, GB/T 12240
» Face to Face (End to End): ANSI B16.10, GB/T 12221
» Flanged Connection: ANSI B16.5, GB/T 9119
» Test and Inspection: API 598, GB/T 13927

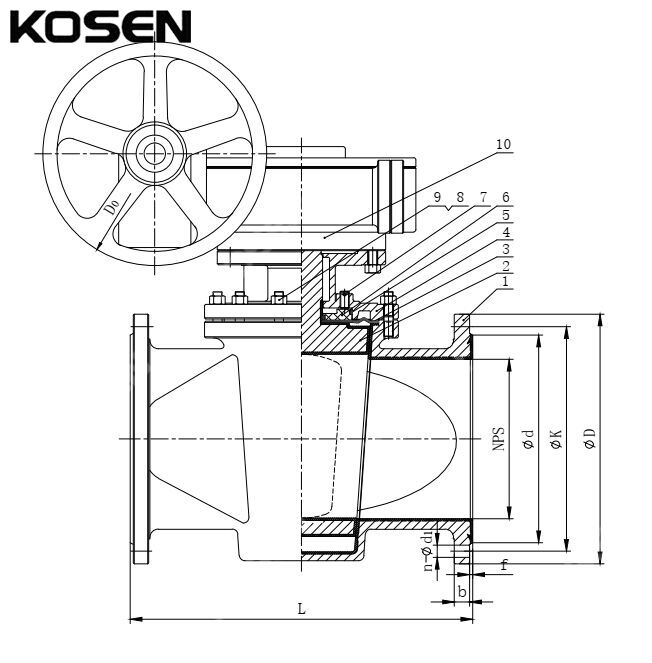

Material for Main Parts
