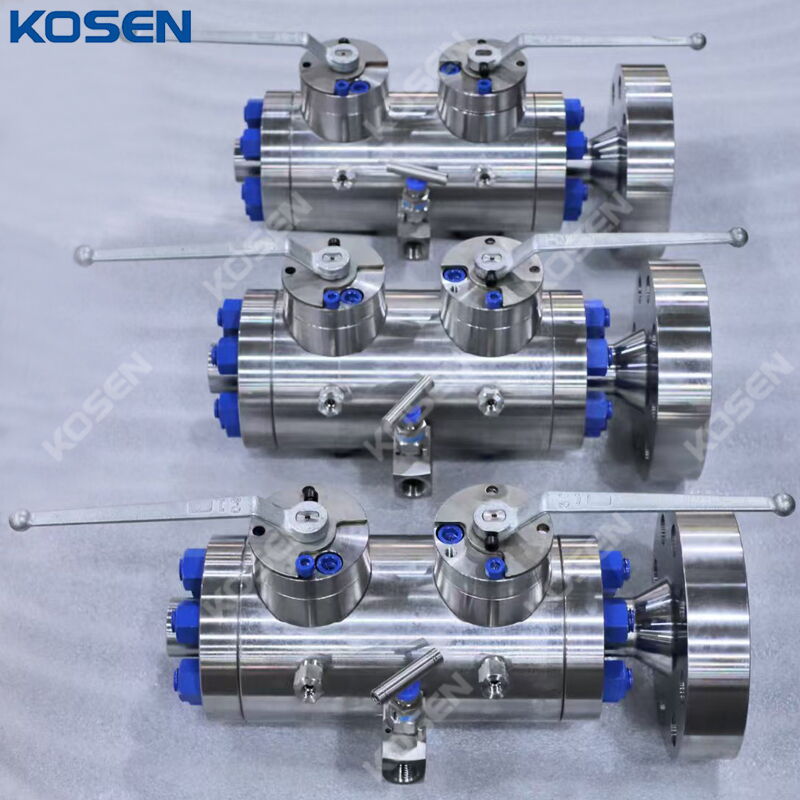

10000 PSI DBB Ball Valve, API 6A, 1-13/16 * 1/2 Inch, Custom

Product Name: 10000 PSI DBB Ball Valve
Type: Double Block & Bleed Ball Valve
Design Standard: API 6A
Body Material: ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L
Size: 1-13/16 * 1/2 Inch
Pressure: 10000 PSI
Operation: Lever
Ends Connections: Flanged * Flanged, Flanged * FNPT
Temperature Range: -46°C to 350°C

Double Block and Bleed (DBB) Valves provide a reliable double isolation function using two obturators housed within a single body. The bleed function is achieved via a bleed/vent system positioned between the obturators, which can be configured as a body port and ball, gate, or needle valve. Derived from the floating ball valve design, KOSEN DBB valves are available in several construction types to suit different applications. Double block and bleed ball valves allow a pipe section to be isolated from both upstream and downstream sides, ensuring enhanced safety by preventing accidental leaks that could cause harm. In addition to their robust safety features, these valves reduce the need for multiple valves in a pipeline, saving space, minimizing installation complexity, and lowering overall costs. They are particularly efficient and widely used in the oil and gas industry.

Technical Specification

» Product: DBB Floating Ball Valve
» Size Range: NPS 1/2-2 Inch (DN15-DN50)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: Forged Carbon Steel, Stainless Steel, Duplex, or Special Alloys (ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L)
» Trim Materials: 13%Cr, SS 304, SS 304L, SS 316, SS 316L, and other special materials
» End Connections: Flanged x Flanged, Flanged x FNPT
» Operation: Handle, Worm Gear, Electric, Pneumatic
» Temperature Range: -46°C to 350°C
» Medium: Water, Gas, Oil
» Standards
   Design and Manufacture: API 6D, BS 5351, ASME B16.34
   Face-to-Face Dimensions(end to end): Manufacturer's standard
   Flanged Connections: ASME B16.5
   Test and Inspection: EEMUA 182, API 598
   Threaded Ends: ASME B1.20.1
   Fire Safety: API 607, API 6A

Product Features

» DBB integrated body with dual-obturator design
» Side-entry forged steel construction
» Top-entry design available upon request
» Low pressure drop through the valve
» Low actuation torque
» Full-bore or reduced-bore options
» Corrosion-resistant materials in compliance with NACE MR0175
» Metal-sealed seat pocket overlays, seal area overlays, or complete cladding on wetted surfaces (welded overlays in Inconel 625, Stainless Steel 316, etc., or electroless nickel plating)
