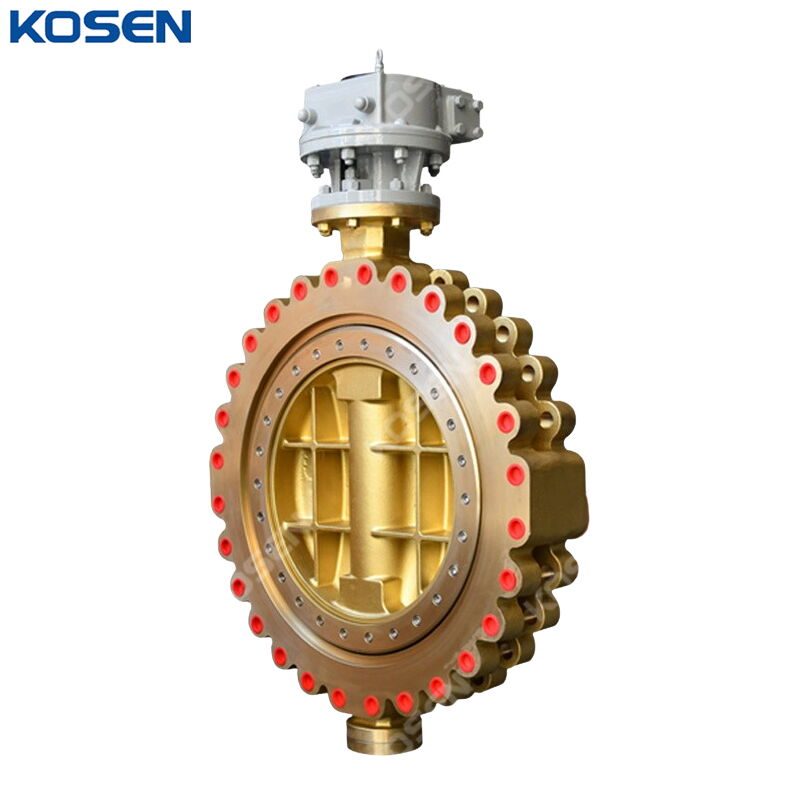

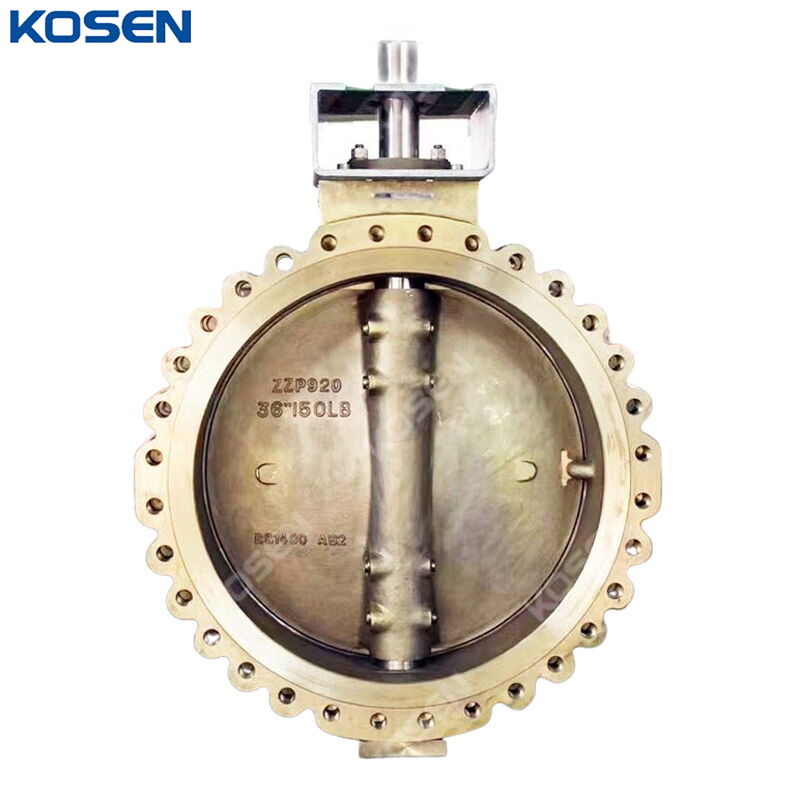

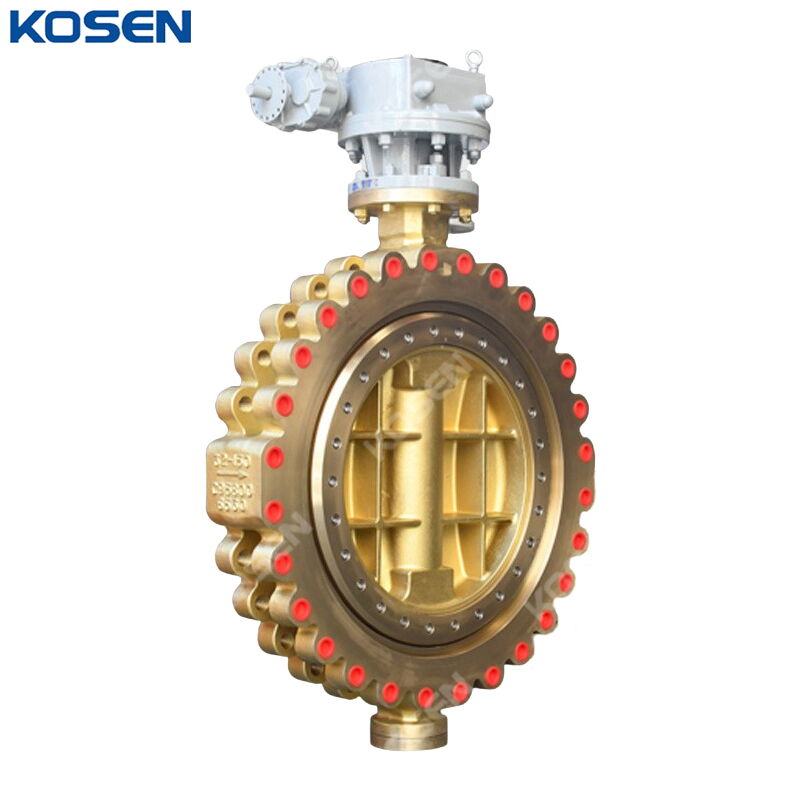

Al-Bronze Butterfly Valve, API 609, C95800, 16 Inch, 150 LB

Product Name: Aluminum Bronze Triple Eccentric Butterfly Valve
Design Standard: API 609
Body Material: Aluminum Bronze ASTM B148 C95800
Shaft Material: MONEL K500
Size: 16 Inch, DN400
Pressure: Class 150 LB, PN20
End Connection: Lug
Operation: Wormgear

We offer a wide range of Triple Eccentric Butterfly Valves designed to meet critical process requirements across various industries, including hydrocarbon, power, chemicals, and fertilizers. Available in multiple pressure classes, body styles, and materials, these valves are suitable for applications in ASME classes up to 600 LB and sizes up to 64 Inch (DN1600 mm). They are manufactured from carbon steel, stainless steel, and alloy steels, capable of withstanding temperatures as high as 538°C (1000°F). Custom options are available for higher pressure classes, larger sizes, and alternative materials, including valves designed for cryogenic services.
These metal-seated valves adhere to API 609 standards and are truly bi-directional, providing high-integrity sealing. All machining operations are performed using advanced 5-axis machining centers, while customized welding machines ensure precision in the manufacturing process.

Product Range

Size Range: 2-40 Inch (DN50-DN1000) (Larger sizes available upon request)
Pressure Ratings: Class 150 LB, PN10, PN16
Body Material: Bronze ASTM N148 C95800
Seat Material: PTFE
Operation: Handle, Worm Gear, Pneumatic, Electric
Temperature Range (Metal Seat): -29°C to 150°C
Medium: seawater, etc
End Connections: Wafer, Lugged, Double Flanged, Butt Weld, or Grooved
Actuations: Manual, Pneumatic, Electric, Hydraulic, Counterweight, Electro-Hydraulic

Product Features

» Lockable Lever: Provides added security and control.
» Site Maintenance: Designed for ease of maintenance at the installation site.
» Ease of Automation: Compatible with automated systems for seamless operation.
» Positive Tight Shut-off: Ensures reliable sealing and shut-off.
» Optional Top Flanges: Available with top flanges to ISO 5211 for easy actuator mounting.
» Versatile Service Qualification: Suitable for both gaseous and liquid services.
» Wide Material Selection: Offers a broad range of body and trim materials to accommodate various medium services.
» Compliance Standards: Conforms to ISO 5752, BS 5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, and DIN 3202 standards.

Triple Offset Butterfly Valve

Triple offset metal sealing butterfly valve uses the three eccentric structure with multi-layer metal seal or pure metal sealing ring, different sealing materials are being used according to the different temperature request from end user.The structure of valve sealing ring that was formed after machining for triple eccentric butterfly valve is oblique cone type, the purpose of which is to let the disc open in a subtle angle and seat sealing surface can be completely separated from the sealing surface of disc, thus to reduce the friction of sealing surface during the open and close.

Triple Offset Frictionless Design

• Offset 1: Offset for seat seal and the rotation center of stem.
• Offset 2: Center of pipe and disc.
• Offset 3: Seat sealing angle center line and flow passage center.
• The triple offset of butterfly valve ensures the valve disc is completely separated from seat sealing surface while open in a slightly angle which could reduce the friction of sealing surface during open and close and opening torque as well as prolong the service life of the sealing surface.
• Our metal sealing butterfly valve adopts multi-layer sealing ring to achieve the valve seal, the multi-layer seal ring is generally made of stainless steel and graphite combination The pure metal sealing can be used for special medium or high temperature.

Seat Structure

• Low Operating Torque: Our butterfly valves combine three offsets. Standard sealing is graphite + metal. Optional PTFE + metal combinations are available for different temperatures and media, using flexible laminated metal and graphite to ensure a tight, uniform seal and reduce operating torque.
• Zero Leakage: Laminated seal rings are self-aligning, allowing the valve to meet zero leakage per API 598.
• Fire-Safe Design: Standard valves are not soft-seated and meet API 607 fire-safe requirements.
• Anti-Blowout Shaft: Double anti-blowout design meets API 609 and ASME B31.1.
• Top Retention: Packing gland follower retains the stem.
• Bottom Retention: T-shaped collar prevents stem blowout.

ISO 5211 Top Mounting

Different End Connections Available:
