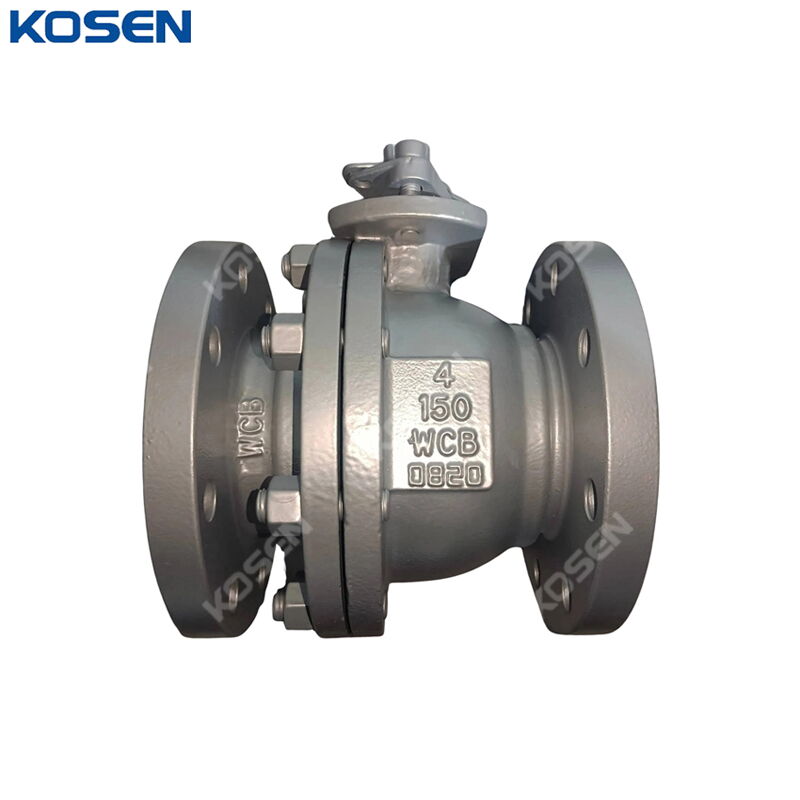

API 6D Floating Ball Valve, A216 WCB, 4 IN, CL150, RF, Lever

Product Name: API 6D Floating Ball Valves
Design Standard: API 6D
Body Material: ASTM A216 WCB, Carbon Steel
Size: 4 Inch, DN100, 100 mm
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Operation: Lever
Temperature Range: -46°C to 120°C

Cast Floating Ball Valves are designed with the ball supported by two PTFE seats, one on the upstream side and the other on the downstream side. Under upstream pressure, the ball is pushed toward the downstream seat, compressing it to achieve a complete shutoff and ensure reliable fluid control. All Cast Floating Ball Valves are produced with high-quality castings and feature a fire-safe design certified in accordance with BS 6755, API 607, and API 6FA. They comply fully with all applicable ASME standards. Floating Ball Valves are available in One-Piece Uni-body, Two-Piece Split Body, and Three-Piece Bolted Body configurations. They are designed and manufactured to the latest international standards such as API 6D, ASME B16.34, BS 5351, or their equivalents. Standard features include fire-safe construction, anti-static protection, and a blowout-proof stem.

Technical Specification

» Product: Cast Floating Ball Valve
» Size Ranges: NPS 1/2-10 Inch (DN15-DN250)
» Design Pressure: Class 150-600 LB (PN10-PN100)
» Materials: Cast Carbon Steel, Stainless Steel, Duplex, or Other Specials
» Trim Materials: 13%Cr, SS 304, SS 304L, SS 316, SS 316L, and other specials
» Seat Materials: NYLON, RPTFE, PEEK
» Ends Connections: FF and RF flange, Welded
» Operation: Handle, Worm Gear, Electric, Pneumatic
» Design and Manufacture: API 6D, BS 5351, ASME B16.34
» Face to Face (End to End): ASME B16.10
» Flanged Connection: ASME B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ASME B16.25
» Fire Safety: API 607, API 6A

Structural Diagram

Product Features

» Low operating torque
» Emergency sealing device
» Fire-safe structural design
» Anti-static structure
» Reliable seat-sealing design
» Special automatic upstream pressure-relief structure
» Blowout-proof stem with flyout-prevention design
» Excellent corrosion resistance and sulfide stress resistance
» Optional locking device or stem extension
» Optional ISO 5211 direct-mounting pad
» Full-port or reduced-bore configuration
