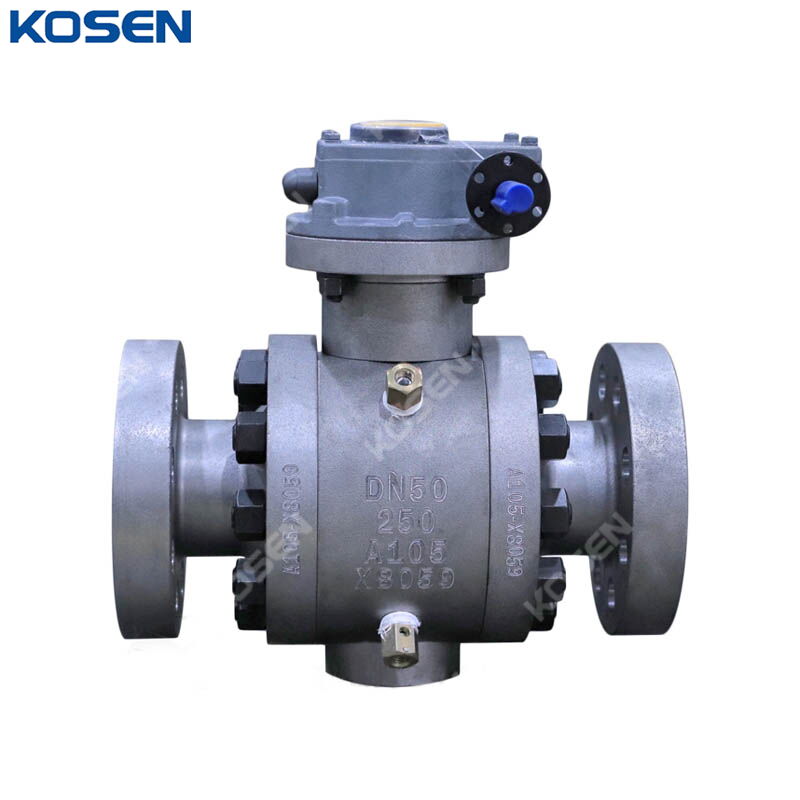

ASTM A105 Trunnion Ball Valve, Carbon Steel, DN50, PN250, RTJ

Product Name: ASTM A105 Trunnion Ball Valves
Type: Trunnion Mounted Ball Valve
Body Material: ASTM A105, Carbon Steel
Size: DN50, 2 Inch, 50 mm
Pressure: PN250, Class 1500 LB
Ends Connections: RTJ Flanged
Operation: Gear Operated
Medium: Water, Gas, Oil, etc
Temperature Range: -46°C to 120°C

Trunnion-Mounted Ball Valves provide easy and smooth operation under high line pressure conditions. Precisely aligned bearings ensure low operating torque, while the trunnion-supported ball remains fixed in position yet free to rotate, enhancing stability and sealing performance. All cast trunnion-mounted ball valves are produced using reliable, high-quality castings and feature a fire-safe design certified in accordance with BS 6755, API 607, and API 6FA. The valves meet all applicable ASME standards. Cast Steel Trunnion Ball Valves are available in two-piece split body and three-piece bolted body configurations. They are designed and manufactured in compliance with the latest international standards, including API 6D, ASME B16.34, BS 5351, or equivalent specifications. Standard features include fire-safe construction, anti-static design, and blowout-proof stem for enhanced safety and reliability.

Technical Specification

» Product: Trunnion Mounted Ball Valve
» Size Ranges: NPS 2–48 Inch (DN50–DN1200)
» Temperature Range: -46°C to 120°C
» Design Pressure: Class 150–2500 LB (PN10–PN420)
» Materials: Cast Carbon Steel, Stainless Steel, Duplex, or Other Specials
» Trim Materials: 13%Cr, SS 304, SS 304L, SS 316, SS 316L, and other specials
» Seat Materials: RPTFE, DEVLON, PEEK
» End Connections: Flanged RF, RTJ, Welded
» Operation: Handle, Worm Gear, Electric, Pneumatic
» Design and Manufacture: API 6D, BS 5351, ASME B16.34
» Face to Face (End to End): ASME B16.10
» Flanged Connection: ASME B16.5, ASME B16.47
» Test and Inspection: API 598, API 6D
» Butt Welded End: ASME B16.25
» Fire Safety: API 607, API 6A

Product Features

» Double Block and Bleed (DBB) design for secure isolation
» Low operating torque for smooth operation
» Emergency sealing device for enhanced safety
» Fireproof structural design
» Anti-static construction to prevent static discharge
» Reliable seat sealing for leak-tight performance
» Single sealing with automatic pressure relief in the middle cavity
» Double sealing with double-piston configuration
» Safety relief device for pressure protection
» Special structure for automatic pressure relief toward upstream
» Blowout-proof stem for secure operation
» Corrosion and sulfide stress-resistant materials
» Optional locking device or stem extension
» Optional direct mounting to ISO 5211
» Full port or reduced bore options available
