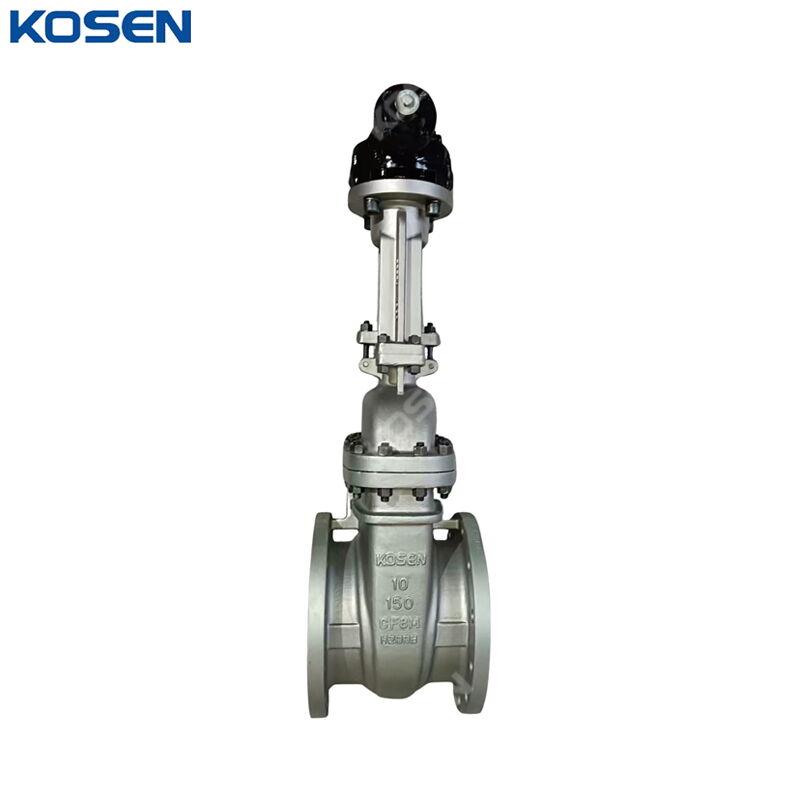

ASTM A351 CF8M Gate Valves, API 600, 10 Inches, CL150 LB, RF

Product Name: ASTM A351 CF8M Gate Valves
Type: Wedge Gate Valve
Design Standard: API 600
Body Material: ASTM A351 CF8M
Size: 10 Inch, DN250 (250 mm)
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Operation: Bevel Gear
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 595°C

Cast Steel Gate Valves are designed and manufactured to ensure leakage of less than 100 ppm (parts per million) of volatile organic compounds (VOCs). Extensive baseline laboratory testing, including both static and cycle testing, has been conducted to establish the critical design parameters required to achieve low-emission sealing at the stem packing and bonnet gasket areas. An in-house testing procedure has been developed and is performed periodically to verify that standard product design and manufacturing practices consistently ensure that our Cast Steel Gate Valves meet a maximum VOC leakage level of 100 ppm prior to shipment.

Technical Specification

» Nominal Diameter: NPS 1/2-48 Inch (DN15-DN1200)
» Temperature Range: -29°C to 595°C
» Medium: Water, gas, oil, etc.
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC, A351 CF8, CF8M, CF3, CF3M, CF8C, CN3MN, CK3MCUN, CN7M, A890 4A (CD3MN), 5A (CE3MN), 6A (CD3MWCuN), B148 C95800, C95500
» End Connections: Flanged (FF, RF, RTJ) to international standards
» Operation: Hand wheel, bevel gear, electric, pneumatic
» Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS 1414
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch to ANSI B16.5, 22 Inch, 26-36 Inch to MSS-SP-44 or to API 605 on request
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.25

Product Features

» Anti-friction ball thrust bearing: Reduces friction between mating components to ensure smooth and reliable operation
» Grub screw: Securely locks the yoke nut to the bonnet
» Grease nipple: Provides lubrication to critical mating components
» OS&Y (Outside Stem and Yoke) design
» Metal-seated construction, available with API Trim Nos. 1, 5, 8, 10, etc.
» Optional locking device or stem extension
» Optional direct mounting to ISO 5211
» Full port design
