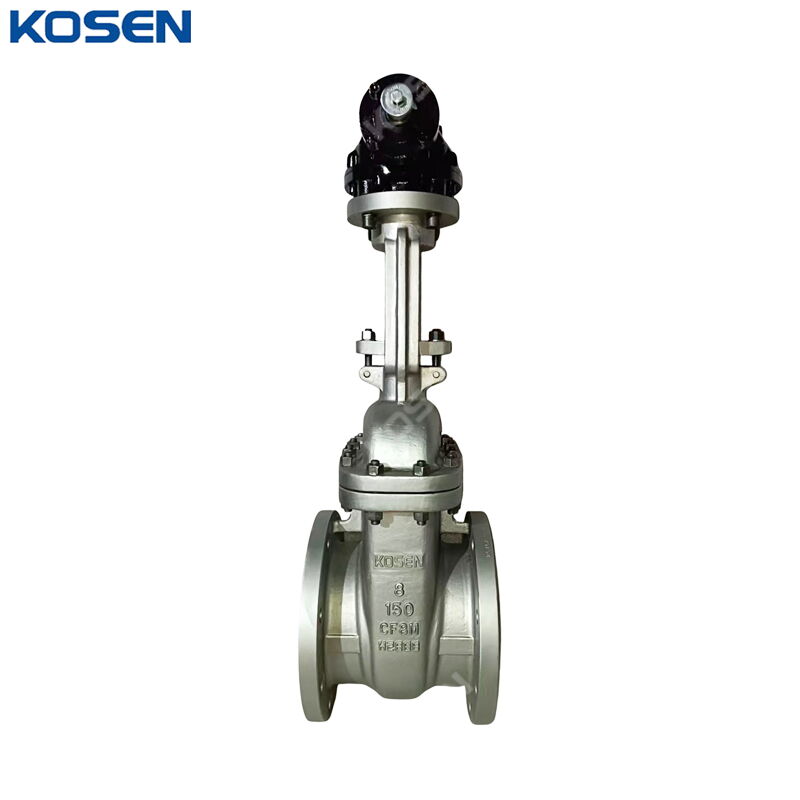

ASTM A351 CF8M Wedge Gate Valve, API 600, 8 Inch, 150 LB, RF

Product Name: ASTM A351 CF8M Wedge Gate Valve
Design Standard: API 600
Body Material: ASTM A351 CF8M
Size: 8 Inch, DN200, 200 mm
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Operation: Bevel Gear
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 595°C

Cast steel gate valves are designed and manufactured to ensure leakage of less than 100 ppm (parts per million) of volatile organic compounds (VOCs). Extensive baseline laboratory testing, including static and cycle testing, has established the critical design parameters required to achieve low-emission sealing in both the stem packing and bonnet gasket areas. An in-house testing procedure has been developed and is performed periodically to ensure that our standard product design and manufacturing processes consistently achieve a maximum VOC leakage of 100 ppm before shipment.

Technical Specification

» Nominal Diameter: NPS 1/2-48 Inch (DN15-DN1200)
» Temperature Range: -29°C to 595°C
» Medium: Water, gas, oil, etc.
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC, A351 CF8, CF8M, CF3, CF3M, CF8C, CN3MN, CK3MCUN, CN7M, A890 4A (CD3MN), 5A (CE3MN), 6A (CD3MWCuN), B148 C95800, C95500
» End Connections: Flanged (FF, RF, RTJ) to international standards
» Operation: Hand wheel, bevel gear, electric, pneumatic
» Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS 1414
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch to ANSI B16.5, 22 Inch, 26-36 Inch to MSS-SP-44 or to API 605 on request
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.25

Product Features

» Anti-Friction Ball Thrust Bearing – Reduces friction between mating parts for smooth operation
» Grub Screw – Secures yoke nut in the bonnet
» Grease Nipple – Supplies lubricant to mating parts
» OS&Y (Outside Stem and Yoke) Design
» Metal-Seated – API Trim #1, #5, #8, #10, etc.
» Optional Locking Device or Stem Extension
» Optional ISO 5211 Direct Mounting
» Full Port Design
