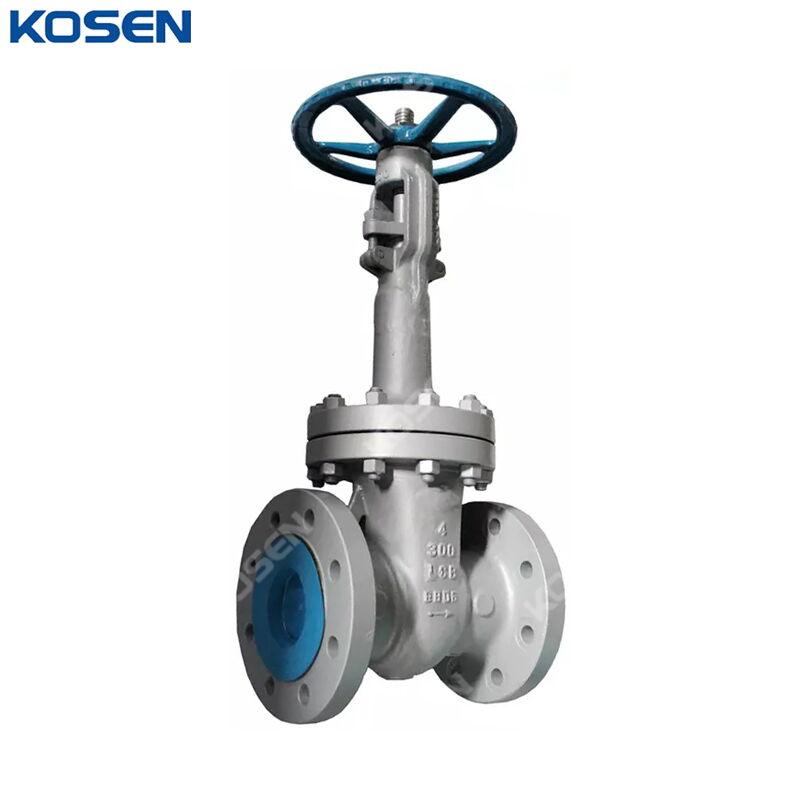

ASTM A352 LCB Wedge Gate Valve, API 600, 4 Inch, 300 LB, RF

Product Name: ASTM A352 LCB Wedge Gate Valve
Type: Flexible Wedge Gate Valve
Design Standard: API 600
Body Material: ASTM A352 LCB, Low Temperature Carbon Steel
Size: 4 Inch, DN100, 100 mm
Pressure: Class 300 LB, PN50
End Connection: RF Flanged
Operation: Handwheel

Cast Steel Gate Valves are designed and manufactured to achieve volatile organic compound (VOC) leakage levels of less than 100 ppm (parts per million). Extensive baseline laboratory testing, including both static and cycle tests, has been conducted to establish the critical design parameters required for low-emission sealing at the stem packing and bonnet gasket areas. In addition, in-house testing procedures have been developed and are performed periodically to verify that standard product design and manufacturing practices consistently ensure that Cast Steel Gate Valves meet a maximum VOC leakage of 100 ppm prior to shipment.

Technical Specification

» Product: Trunnion Mounted Ball Valve
» Size Ranges: NPS 2–48 Inch (DN50–DN1200)
» Temperature Range: -46°C to 120°C
» Design Pressure: Class 150–2500 LB (PN10–PN420)
» Materials: Cast Carbon Steel, Stainless Steel, Duplex, or Other Specials
» Trim Materials: 13%Cr, SS 304, SS 304L, SS 316, SS 316L, and other specials
» Seat Materials: RPTFE, DEVLON, PEEK
» End Connections: Flanged RF, RTJ, Welded
» Operation: Handle, Worm Gear, Electric, Pneumatic
» Design and Manufacture: API 6D, BS 5351, ASME B16.34
» Face to Face (End to End): ASME B16.10
» Flanged Connection: ASME B16.5, ASME B16.47
» Test and Inspection: API 598, API 6D
» Butt Welded End: ASME B16.25
» Fire Safety: API 607, API 6A

Product Features

» Anti-friction ball thrust bearing: Reduces friction between mating parts for smooth and reliable operation
» Grub screw: Securely locks the yoke nut in the bonnet
» Grease nipple: Provides lubrication to critical mating components
» OS&Y (Outside Stem and Yoke) design
» Metal-seated construction with API Trim Nos. 1, 5, 8, 10, etc.
» Optional locking device or stem extension
» Optional direct mounting in accordance with ISO 5211
» Full-port design
