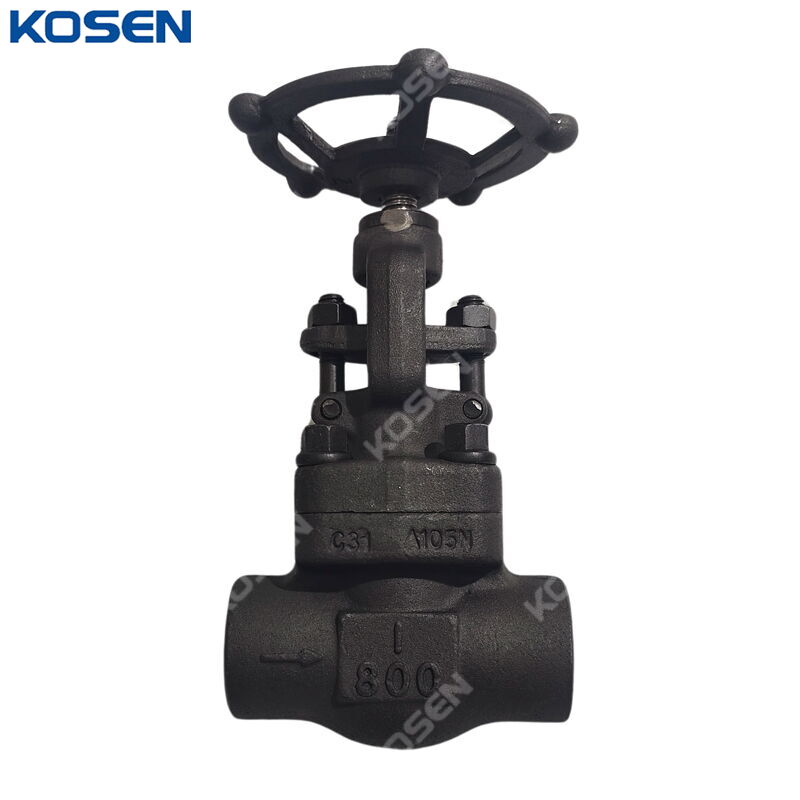

Forged ASTM A105N Globe Valve, API 602, 1 IN, CL800, SW Ends

Product Name: ASTM A105N Forged Steel Globe Valve
Design Standard: API 602
Body Material: ASTM A105N
Size: 1 Inch, DN25
Pressure: Class 800 LB, PN130
End Connection: SW End
Operation: Manual

Forged Steel Globe Valves are built to meet international standards like API 602, ASME B16.34, and DIN 3202. They have a compact, strong design that is perfect for high-pressure and high-temperature use. The optional solid CoCr alloy wedge helps reduce friction and extends the valve's lifespan. The packing rings are pre-compressed to 4000 psi to ensure a tight seal. For welded bonnet valves, the bonnet is threaded and tightened to a specific torque, and the body-bonnet joint is welded for extra leak protection. The fully guided wedge reduces wear on the seating surfaces, making the valve more durable. Optional features include double packing, leak-off connections, live-loading, and a packing blowout function for easy removal of old packing.

Technical Specifications

» Size Range: NPS 1/2-2 Inch (DN15-DN50)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, and other materials such as ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L
» Trim Materials: 13% Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, etc.
» End Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Design and Manufacture: ASME B16.34, API 602
» Face-to-Face (End-to-End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt-Welded End: ANSI B16.5
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11
» Temperature Range: -29°C to 595°C
» Medium: Water, gas, oil, etc.

Product Features

» Corrosion Resistance: After fine processing, forged steel materials offer excellent corrosion resistance, making them suitable for handling various corrosive media and extending the valve's service life.
» Compact Design: Forged steel globe valves are designed to be more compact, occupying less space and making them easy to install. This design is especially beneficial for applications with limited space.
