In modern industry and urban infrastructure, pipeline systems are like the blood vessels of the human body, responsible for transporting various fluids. The fully welded ball valve, as a key component of the pipeline system, has become an important guardian of underground pipelines and high-pressure systems due to its outstanding performance and reliability. Today, let us take an in-depth look at the numerous advantages and extensive applications of fully welded ball valves.
The core of a fully welded ball valve lies in its one-piece welded body. All major components, including the body, ball, and stem, are permanently sealed together through high-quality welding. This seamless welded body design eliminates the need for traditional flange joints or bolted connections, fundamentally preventing leakage caused by loose connections or insufficient sealing. The explosion-proof stem design adds a solid layer of protection for valve safety; even under high-pressure environments, the stem will not be ejected due to pressure, ensuring operational safety.
Fully welded ball valves also provide options for floating or trunnion-mounted balls to accommodate different pressure levels and applications. For special installation requirements, such as buried or remote installations, extended stems and actuators are particularly practical, allowing convenient remote operation and monitoring, greatly improving work efficiency and operational convenience.
Fully welded ball valves, with their excellent performance, economic and environmental advantages, as well as advanced technology and innovative design, are widely applied across many fields. The comprehensive advantages include:
The welded structure gives the fully welded ball valve exceptional strength. Compared with bolted or multi-piece bodies, fully welded ball valves can have thinner walls under the same strength requirements. This not only reduces the weight of the valve but also enhances its resistance to pipeline bending and compression. At the same time, the elimination of body flanges and bolts reduces external dimensions, removing potential leakage paths, making the valve more stable and reliable during operation, capable of withstanding high pressure and temperature fluctuations, ensuring long-term stable operation.
The sealing performance of fully welded ball valves is first-class. There are two sealing structures between the seat and the ball: the traditional soft seal structure and the V-ring seal structure. The stem is designed to prevent blowout, effectively avoiding ejection from the valve body due to improper operation. Additionally, the valve is equipped with fireproof and antistatic devices, further enhancing safety. Normally, sealing does not rely on grease; however, if the sealing surface is damaged and leakage occurs, emergency grease can be injected through the grease injection port for rapid repair. Each injection port is equipped with a grease valve and an embedded check valve, ensuring the safety and reliability of the grease injection process.
To adapt to various harsh working environments, fully welded ball valves are coated with corrosion-resistant layers. These coatings effectively resist corrosion from soil and the environment, maintaining valve performance even in highly corrosive conditions. Special coatings, heat treatments, and rust-proof treatments for welded materials further improve corrosion resistance and service life. With proper maintenance, fully welded ball valves can reliably operate for 30 years or longer, making them ideal for buried installations that are difficult to access.
The low maintenance requirements and long service life of fully welded ball valves greatly reduce the total cost of ownership over their lifetime. With fewer potential weak points, the valve requires minimal maintenance for reliable operation, reducing maintenance and leakage repair costs. Additionally, the fully welded structure is more compact, lighter, and saves installation space, further lowering installation costs.
The excellent sealing performance and corrosion resistance of fully welded ball valves result in virtually no leakage during operation, reducing fluid waste and environmental pollution. In pipelines carrying hazardous or volatile fluids, fully welded ball valves effectively reduce leakage risks, protect the environment, and meet modern environmental requirements.
Rotating Seat Technology: Fully welded ball valves of DN300 and above adopt a unique rotating seat design. Each time the valve opens or closes, the upstream and downstream seats are rotated 15 degrees by the paddles on the ball. After 12 operations, the same part of the seat is re-exposed to flow, ensuring even wear and significantly extending seat life. This design not only increases seat durability but also resolves the internal leakage issues common in conventional fixed-seat ball valves.
Stem Sealing System: Fully welded ball valves of DN50 and above are equipped with a grease injection system for the stem. If debris enters between the ball and seat and damages the sealing surface, specialized grease can still be injected via the secondary seat to maintain sealing. This grease injection system provides dual protection for valve sealing, ensuring performance even in extreme conditions, greatly enhancing reliability and safety.
Automatic Pressure Relief and Seal Repair: Fully welded ball valves also feature automatic pressure relief and seal repair functions. When the chamber pressure exceeds the spring preload, the outlet seat retracts from the ball for automatic pressure relief, then resets automatically. If the sealing surface is damaged, corresponding sealant can be injected through the auxiliary sealing system to restore it. These advanced functions not only extend service life and reliability but also reduce maintenance costs and operational risks.
With their outstanding performance and reliability, fully welded ball valves are widely applied in many areas. From underground pipeline systems to long-distance transmission pipelines, from high-pressure systems to various industrial fluid pipelines, fully welded ball valves provide reliable solutions for complex applications.

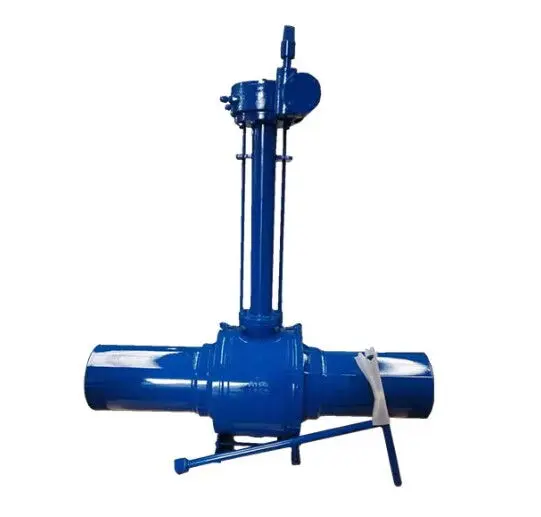

Fully welded ball valves are ideal for underground pipeline systems. Whether for gas output pipelines, mains and branch pipelines, or heating supply mains and branches, fully welded ball valves ensure safe operation with excellent sealing performance and corrosion resistance. For buried installations, extended stems and corresponding grease, drainage, and venting devices can conveniently reach above ground for operation and maintenance.
In long-distance pipelines, the compact structure and low maintenance requirements make fully welded ball valves indispensable. Without body seams or bolts, external leak paths are eliminated, and the welded design ensures safety during long-distance transport. High strength and corrosion resistance allow them to withstand high pressure and harsh environments, ensuring transmission stability and reliability.
In high-pressure systems, the high strength and excellent sealing performance of fully welded ball valves are major advantages. The valve maintains stable operation under high pressure without leakage or damage. The stem design and sealing system effectively handle high-pressure challenges, ensuring low operating torque and smooth operation, greatly improving system efficiency and safety.
Compared with traditional three-piece ball valves, fully welded ball valves have significant advantages:
Structure: Fully welded valves are compact, with thinner walls and lighter weight, eliminating potential leakage paths, unlike conventional valves with flanges and bolts.
Flow Performance: Smooth internal curves maintain good fluid flow without dead zones.
Operation: High-strength satin-finished steel stems, supported by PTFE-wrapped stainless steel bearings, rotate smoothly and precisely. Pivot-supported stems absorb thrust from pipeline pressure and reduce friction between the ball and seat, ensuring low torque operation even under full pressure. Traditional valves often require high torque and are difficult to operate under large pressure differentials.
Sealing: Fully welded valves feature grease injection and automatic pressure relief systems, addressing internal leakage and seat damage. Conventional valves lack grease injection, requiring complete valve replacement if sealing fails, increasing maintenance costs.
Installation of Fully Welded Ball Valve: Ensure the valve end material matches the pipeline grade for strength and weldability. Adjust welded end materials as needed, and maintain sleeve length for proper field welding. For buried valves, extend stems and auxiliary systems above ground for operation. Confirm flow direction matches valve markings, avoid nearby high-temperature operations, and perform thorough post-installation inspection and testing.
Maintenance of Fully Welded Ball Valve: Fully welded ball valves are relatively simple to maintain but require regular inspection. Check sealing performance and operational ease. For valves with grease injection, inspect ports and inject grease as needed. Inspect stems and seats for wear, remove debris, and maintain corrosion-resistant coatings in harsh environments. Follow safety protocols during maintenance to ensure personnel safety.
With their one-piece welded body, exceptional strength, reliability, and sealing, fully welded ball valves are widely applied in underground pipelines, long-distance transmission pipelines, and high-pressure systems. Corrosion-resistant coatings, specially designed seats, and stem sealing systems enable long-term stable operation in harsh environments. Compared with conventional valves, they offer compact structure, light weight, low maintenance, and long service life, reducing total ownership costs while meeting environmental requirements.
As technology continues to advance, fully welded ball valves will play an increasingly important role in industrial development, ensuring safe, stable, and efficient pipeline operation. Proper selection, installation, and maintenance, combined with attention to technological trends, will maximize performance and service life, contributing to industrial production and urban infrastructure development.
