Key Specifications / Features

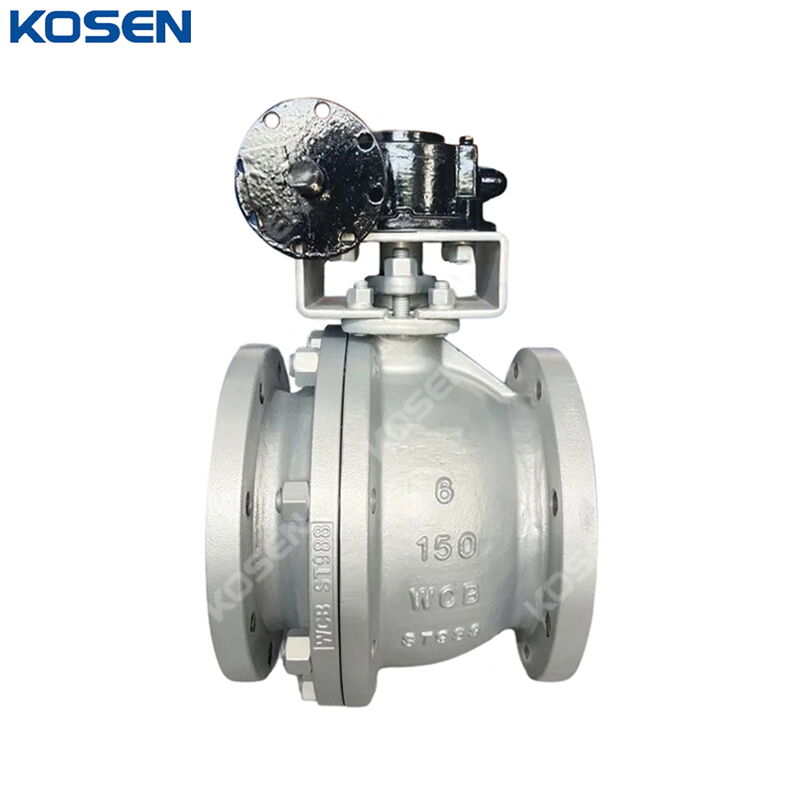

The 2-piece Floating Ball Valve features a 150 mm ball valve with a robust carbon steel ASTM A216 WCB body. It has a 6-inch diameter, rated at Class 150 LB, DN150, and PN20 pressure specifications. The valve is equipped with RF flanged ends for secure connections and includes a lever for easy operation. This valve is designed for reliable flow control in various industrial applications.
- Model No.: KV-20251210-FBV-01
- Hits: 0
- Categories: Floating Ball Valve
- Tags: Floating Ball Valve, ASTM A216 WCB Ball Valve, 2 Piece Ball Valve
Detail Information
Product Name: 2-piece Floating Ball Valve
Type: Floating Ball Valve
Body Material: Carbon Steel ASTM A216 WCB
Size: 6 Inch, DN150, 150 mm
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Operation: Lever
Temperature Range: -46°C to 120°C
Medium: Water, Gas, Oil, etc.
The cast floating ball valve design supports the ball with two PTFE seats, one on the upstream side and the other on the downstream side. When upstream pressure is applied, the ball is pushed toward the downstream seat, compressing it to achieve a complete shutoff. All cast floating ball valves feature high-quality castings and a fire-safe design certified according to BS 6755, API 607, and API 6FA. They meet all applicable ASME standards. Our floating ball valves are available in one-piece uni-body, two-piece split-body, and three-piece bolted-body designs. They are engineered and manufactured to the latest international standards, including API 6D, ASME B16.34, BS 5351, or their equivalents, and come with standard features such as fire-safe construction, anti-static devices, and blowout-proof stems.
Technical Specification
» Product: Cast Floating Ball Valve
» Size Ranges: NPS 1/2-10 Inch (DN15-DN250)
» Design Pressure: Class 150-600 LB (PN10-PN100)
» Materials: Cast Carbon Steel, Stainless Steel, Duplex, or Other Specials
» Trim Materials: 13%Cr, SS 304, SS 304L, SS 316, SS 316L, and other specials
» Seat Materials: NYLON, RPTFE, PEEK
» Ends Connections: FF and RF flange, Welded
» Operation: Handle, Worm Gear, Electric, Pneumatic
» Design and Manufacture: API 6D, BS 5351, ASME B16.34
» Face to Face (End to End): ASME B16.10
» Flanged Connection: ASME B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ASME B16.25
» Fire Safety: API 607, API 6A
Product Features
» Low Operating Torque
» Emergency Sealing Device
» Fireproof Structural Design
» Anti-static Structure
» Reliable Seat Sealing Structure
» Special Automatic Upstream Pressure Relief Design
» Blowout-Proof Stem (Stem Flyout Prevention Structure)
» Corrosion Resistance and Sulfide Stress Resistance
» Optional Locking Device or Stem Extension
» Optional ISO 5211 Direct Mounting
» Full Port or Reduced Bore
