Key Specifications / Features

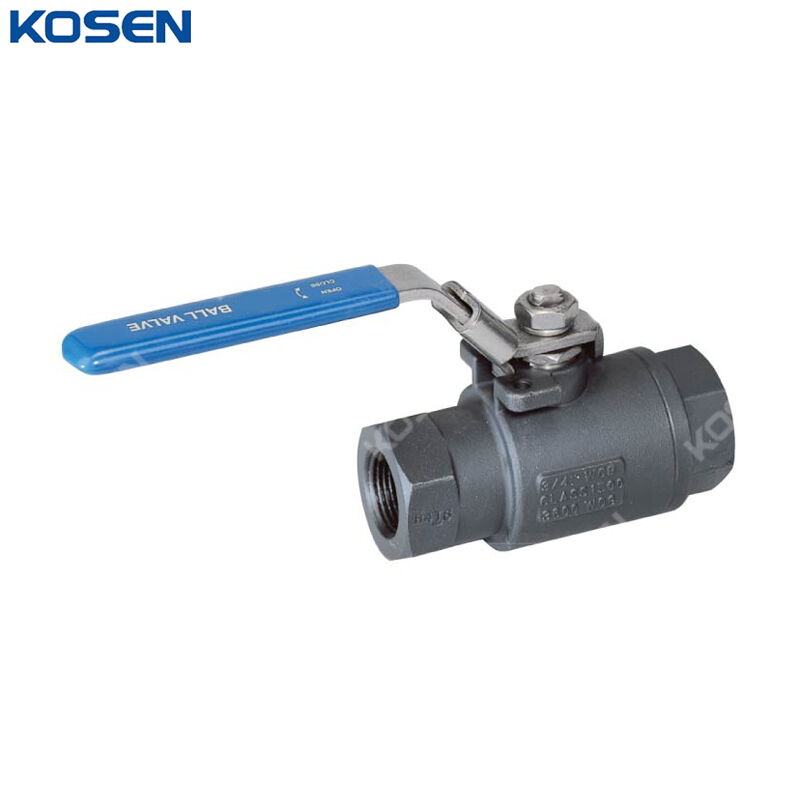

The China 3600 WOG Ball Valve is a robust 2-piece ball valve designed for high-pressure applications. It features a carbon steel ASTM A216 WCB body, ensuring durability and strength. The full port design allows for maximum flow capacity, while the seal-welded construction enhances reliability and prevents leaks. With a size of 3/4 inch (DN20), it offers NPT threaded ends for easy installation and secure connections. Lever-operated for convenient manual control, this valve is ideal for industrial systems requiring high performance and reliability.
- Model No.: KV-20250609-TBV-02
- Hits: 10
- Categories: Threaded Ball Valve
Detail Information
Product Name: 3600 WOG Ball Valve, 2PC, Seal-Welded, FP
Body Material: ASTM A216 WCB
Size: 3/4 Inch, DN20
Pressure: 3600 WOG
End Connection: NPT Threaded
Operation: Lever
Medium: Water, Oil, Gas, etc
Temperature Range: -20°C to 150°C
The 3000 PSI high-pressure ball valve is a robust valve designed for high-pressure applications, offering exceptional durability and reliability. It is specifically engineered to handle demanding industrial processes, making it a preferred choice in industries such as petrochemicals, gas and oil, and hydraulics. This valve features a 3000 PSI pressure rating, ensuring it can withstand significant operational pressures. The body of the 3000 PSI internal thread ball valve is manufactured using a silica gel casting process, resulting in a structurally sound and aesthetically pleasing design. The valve seat employs an elastic sealing structure, providing reliable sealing performance and smooth operation. The valve rod features a bottom-mounted structure with an inverted seal, ensuring that it will not be ejected even if the valve chamber experiences abnormal pressurization.
Structural Features
» Configuration: 2-Piece Threaded, Full Port 1/4 to 2 Inches
» Construction: Seal Weld
» Body Material: ASTM A216 WCB
» Pressure Rating: 3000 CWP
» Corrosion Resistance: NACE MR-01-75 compliant
» Testing Standard: API 598
» Handle: Locking Device Handle
» End Connections: NPT Threaded Ends (comply with ANSI B1.20.1)
» Stem: Blowout Proof Stem
» Safety Feature: Anti-static Device
» Mounting Option: Mounting Pad

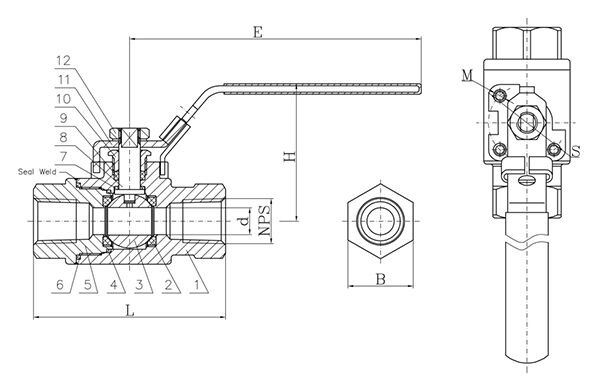

Structural Diagram
Materials of Main Parts
No | Part | Material |
1 | BODY | ASTM A216 WCB |
2 | SEAT | DELRIN, PEEK |
3 | BALL | SS 316 |
4 | WASHER | SS 316 |
5 | BONNET | ASTM A216 WCB |
6 | GASKET | SS 304 |
7 | WASHER | GRAPHITE |
8 | STEM | SS 316 |
9 | PACKING | RPTFE |
10 | GLAND | SS 304 |
11 | HANDLE | SS 201+PVC |
12 | NUT | A2-70 |
Main Dimensions (mm)
Size | Port | Pressure | d | L | H | S | M | E |
1/4 inch | FP | 3000 PSI | 10 | 76 | 62 | 36 | M5 | 145 |
3/8 inch | FP | 3000 PSI | 12.7 | 76 | 62 | 36 | M5 | 145 |
1/2 inch | FP | 3000 PSI | 12.7 | 90 | 62 | 36 | M5 | 145 |
3/4 inch | FP | 3000 PSI | 19 | 100 | 73 | 42 | M5 | 180 |
1 inch | FP | 3000 PSI | 25 | 118 | 80 | 50 | M6 | 190 |
1-1/2 inch | FP | 3000 PSI | 38 | 135 | 115 | 70 | M8 | 250 |
2 inch | RP | 3000 PSI | 38 | 140 | 115 | 70 | M8 | 250 |
