Key Specifications / Features
- Model No.: KV-20250104-TBV-01
- Hits: 52
- Categories: Threaded Ball Valve
- Tags: ASTM A395 Ball Valve, 2-1/2 Inch Ball Valve, NPT Ball Valve
Detail Information

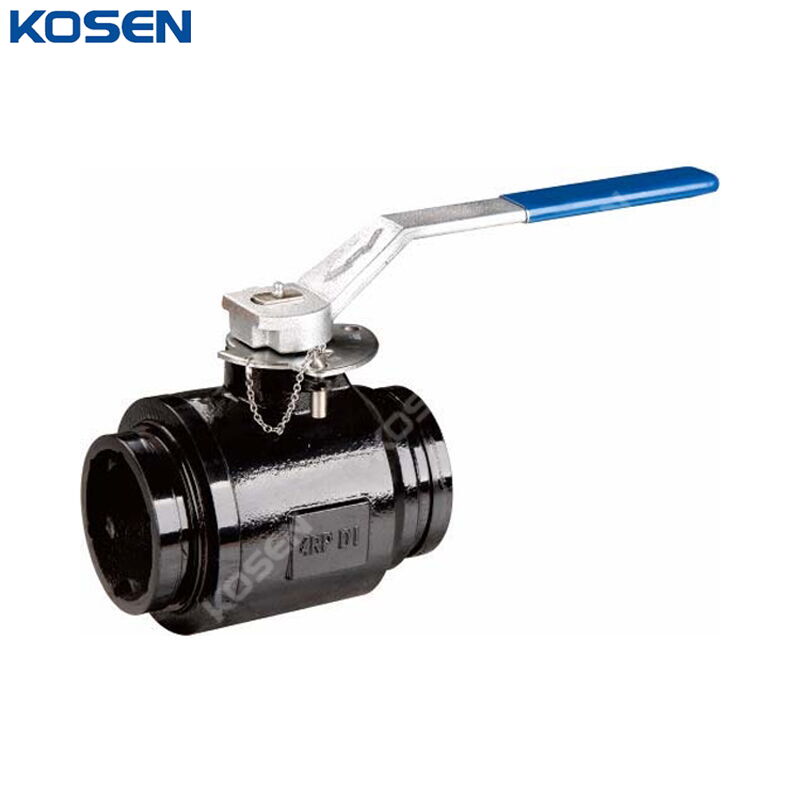

Product Name: Oilfield Ball Valve, Full Port
Body Material: Ductile Iron ASTM A395
Size: 2-1/2 Inch, DN65
Pressure: 2000 PSI
End Connection: NPT Threaded
NACE: NACE MR0175
This ball valve is engineered specifically for oil field applications, featuring a durable valve body with valve tubes positioned on both sides. The right side of the inner cavity includes a second slide rail to enhance operational stability. The valve rod extends through the valve body, topped with a stable block that securely holds a handwheel. Additionally, a limit device is integrated within the valve rod's inner cavity, ensuring precise and reliable control.
Technical Specifications
» Size Range: NPS 1–4 Inch (DN25–DN100)
» Pressure Ratings: 1000 PSI, 1500 PSI, 2000 PSI NSCWP
» Temperature Range: -29°C to 120°C
» Body and Bonnet Material: Ductile Iron ASTM A395
» Seat Material: RPTFE, DELRIN
» Ball and Stem Material: SS420, SS304, SS316
» End Connections: ASME B1.20.1 (NPT), API 5B LP
» Inspection and Testing: API 598
» Suitable Mediums: Water, oil, gas
Product Features
» Threaded Body Construction
» Adjustable Packing Gland
» Blow-Out-Proof Stem
» Lockable Lever Handle
» Lever Operated, Threaded
» Floating Ball, 2000 W.O.G. Full Port
» Fire-Safe Design
» Rugged Locking Device
» Grease Fitting
» NACE MR-0175 Compliant
» Full Port or Reduced Bore Optional

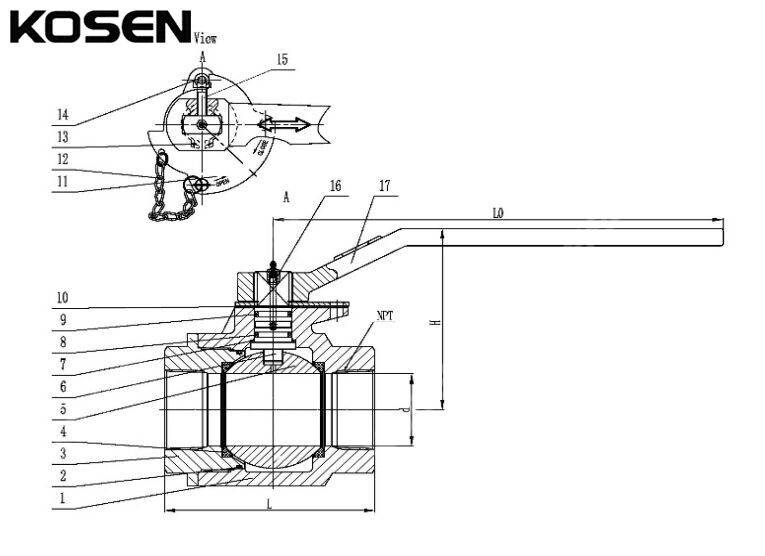

Materials of Main Parts
No | Part | Matarial |
1 | Body | Ductile Iron A395 |
2 | Body Seal | VITON |
3 | Bonnet | Ductile Iron A395 |
4 | Seats | RPTFE/SELRIN |
5 | Ball | SS420, SS304, SS316 |
6 | Stem | ASTM A276 420 |
7 | Thrust Bearing | PTFE |
8 | Stem Seal | VITON |
9 | Stem Seal | VITON |
10 | Stem Bearing | PTFE |
11 | Stop Plate | CS+Ni |
12 | Pin with chain | Stainless Steel |
13 | Retainer Ring | Spring Steel |
14 | Stop Pin | Spring Steel |
15 | Hexagon Bolt | Carbon Steel |
16 | Grease Zerk | Carbon Steel |
17 | Handle | Ductile Iron |
Main Dimensions (mm)
Size | Port | Pressure | L(mm) | H(mm) | d(mm) | D(NPT) | KGS |
1" | FP | 2000PSI | 102 | 93 | 25.4 | 11.5 | 1.93 |
2" | RP/FP | 2000PSI | 140 | 134 | 38 | 11.5 | 6.00 |
2-1/2" | RP/FP | 2000PSI | 152 | 140 | 50 | 8 | 8.28 |
3" | RP/FP | 2000PSI | 190 | 140 | 50 | 8 | 9.00 |
4" | RP/FP | 2000PSI | 222 | 174 | 76 | 8 | 20.00 |
