Grooved Ball Valve, Ductile Iron, 4 Inch, 1500 PSI, Lever

Product Name: Grooved Oil Field Ball Valve
Body Material: Ductile Iron
Size: 4 Inch, DN100
Design Pressure: 1500 PSI
End Connection: Grooved End
Operation: Lever

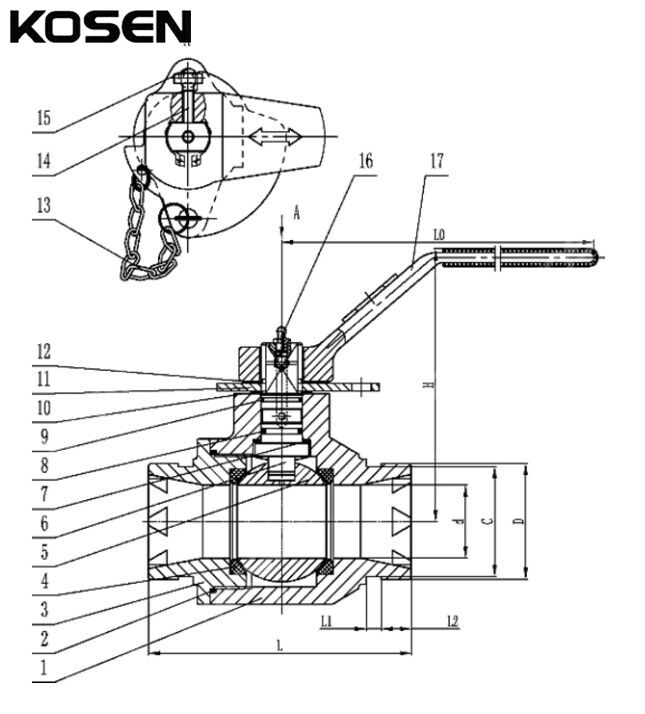

This ball valve is specifically designed for oil field applications. It consists of a robust ball valve body and a valve tube. The valve body features valve tubes on both the left and right sides. The right side of the inner cavity of the ball valve body is equipped with a secondary slide rail. The valve rod passes through the entire ball valve body. A stable block is securely mounted at the top of the valve rod, with a handwheel firmly attached to the top of the stable block for easy operation. Additionally, a limit device is installed within the inner cavity of the valve rod to ensure precise control and safety during operation.

Structural Features

» Size Range: NPS 2–6 Inch (DN50–DN150)
» Design Pressure: 1500 PSI (100 bar)
» Temperature Range: -29°C to 120°C
» Medium: Water, Oil, Gas, etc
» High-Grade Ductile Iron with Better Corrosion Resistance and Greater Yield Strength
» RPTFE Seat for 2 Inch, 3 Inch and 4 Inch; Delrin Seat for 6 Inch
» Standard port design
» NACE Valves Include Stainless Steel 316 Ball and Stem
» Locking Device Standard
» Grooved Dimensions Conform to ANSI/AWWA C606

Materials of Main Parts

Main Dimensions (Inch)
