Key Specifications / Features
- Model No.: KV-20250206-TBV-01
- Hits: 46
- Categories: Threaded Ball Valve
- Tags: ASTM A395 Ball Valve, Ductile Iron Ball Valve, 2 Inch Ball Valve
Detail Information
Product Name: 2 Piece Oilfield Ball Valve, Full Port
Body Material: Ductile Iron ASTM A395
Size: 2 Inch, DN50
Pressure: 2000 PSI
End Connection: NPT
Operation: Lever
Service: Oilfield
This is a specialized ball valve designed for oil field applications, comprising a ball valve body and a valve tube. The ball valve body is equipped with valve tubes on both the left and right sides. The right side of the inner cavity of the body features a second slide rail. A valve rod runs through the body of the ball valve, with a stable block installed at the top of the valve rod. A handwheel is securely fixed to the top of the stable block for operation, while a limit device is integrated within the inner cavity of the valve rod for precise control.
Technical Specifications
» Size Range: NPS 1-4 Inch (DN25-DN100)
» Pressure: 1000 PSI, 1500 PSI, 2000 PSI NSCWP
» Body and Bonnet Material: Ductile Iron ASTM A395
» Seat Material: RPTFE, DELRIN
» Ball and Stem Material: SS 420, SS 304, SS 316
» End Connections: ASME B1.20.1 (NPT), API 5B LP
» Inspection and Testing: API 598
» Temperature Range: -20°C to 120°C
» Medium: Water, Oil, Gas
Product Features
» Threaded Body Construction
» Adjustable Packing Gland
» Blow-out-Proof Stem
» Lockable Lever Handle
» Lever Operated, Threaded
» Floating Ball, 2000 W.O.G
» Fire Safe Design
» Rugged Locking Device
» Grease Fitting
» NACE MR-0175 Compliant
» Full Port or Reduced Bore Optional
Materials of Main Parts

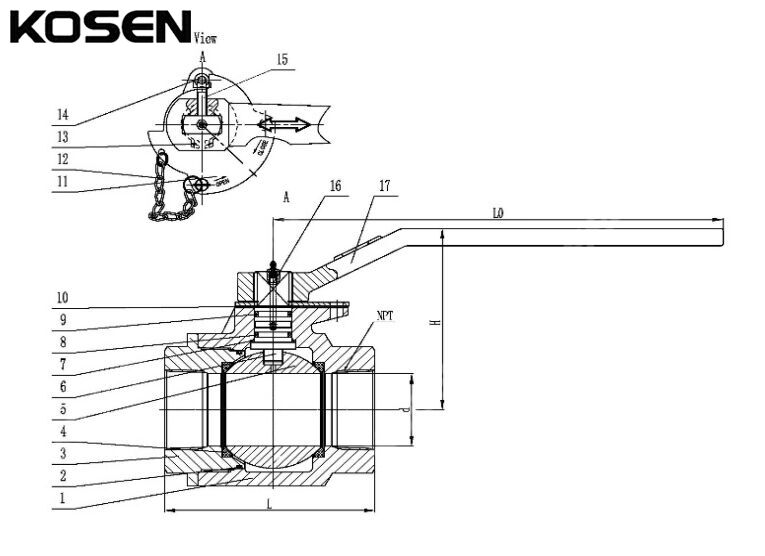

No | Part | Material |
1 | Body | Ductile Iron ASTM A395 |
2 | Body Seal | VITON |
3 | Bonnet | Ductile Iron ASTM A395 |
4 | Seats | RPTFE/SELRIN |
5 | Ball | SS 420, SS 304, SS 316 |
6 | Stem | ASTM A276 420 |
7 | Thrust Bearing | PTFE |
8 | Stem Seal | VITON |
9 | Stem Seal | VITON |
10 | Stem Bearing | PTFE |
11 | Stop Plate | CS+Ni |
12 | Pin with chain | Stainless Steel |
13 | Retainer Ring | Spring Steel |
14 | Stop Pin | Spring Steel |
15 | Hexagon Bolt | Carbon Steel |
16 | Grease Zerk | Carbon Steel |
17 | Handle | Ductile Iron |
Main Dimensions (mm)
Size | Port | Pressure | L(mm) | H(mm) | d(mm) | D(NPT) | KGS |
1 Inch | FP | 2000 PSI | 102 | 93 | 25.4 | 11.5 | 1.93 |
2 Inch | RP/FP | 2000 PSI | 140 | 134 | 38 | 11.5 | 6.00 |
2-1/2 Inch | RP/FP | 2000 PSI | 152 | 140 | 50 | 8 | 8.28 |
3 Inch | RP/FP | 2000 PSI | 190 | 140 | 50 | 8 | 9.00 |
4 Inch | RP/FP | 2000 PSI | 222 | 174 | 76 | 8 | 20.00 |
