Diaphragm pumps, commonly used in industries like chemical, petroleum, and pharmaceuticals, are prone to diaphragm damage over time, which affects their performance and lifespan. Key causes of diaphragm damage include solid particles in the medium, improper installation, material selection issues, excessive working pressure, and mechanical failures. Preventive measures to mitigate these issues include installing filters to remove solid particles, adhering to proper installation and maintenance procedures, selecting suitable diaphragm materials, optimizing working conditions, and ensuring stable feed and temperature. Regular inspections and maintenance of both mechanical components and hydraulic systems are also crucial to extend the diaphragm pump's lifespan and ensure reliable operation.

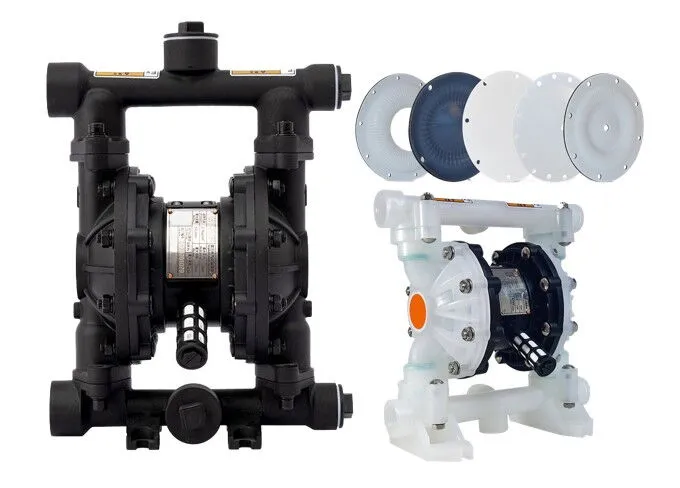

Diaphragm pumps, as a common fluid transfer equipment, are widely used in industries such as chemical, petroleum, and pharmaceutical due to their simple structure and ease of operation. However, during long-term use, the diaphragms of these pumps are prone to damage, which can affect the normal operation and service life of the equipment. To enhance the reliability and extend the lifespan of diaphragm pumps, it is crucial to understand the causes of diaphragm damage and implement effective preventive measures. This article will analyze the main causes of diaphragm damage in detail and propose targeted preventive measures.
Cause: Solid particles in the medium are one of the common causes of diaphragm damage. When large solid particles are present in the medium, they can become trapped between the diaphragm and the pump body, causing the diaphragm to endure additional pressure and wear. The damage from solid particles typically manifests as localized excessive pressure or friction, leading to diaphragm rupture or wear.
Preventive Measures: To prevent damage from solid particles, install an efficient filter before the pump to remove large particles from the medium. Additionally, regularly inspect the filter's condition to ensure it functions effectively, thereby avoiding damage caused by particle contamination.
Cause: Diaphragm damage is often related to incorrect installation and maintenance practices. For example, improper installation of Y-seals or severe wear of the seals can lead to medium leakage, which further erodes the diaphragm. Improper installation or failure to follow standard procedures can result in poor sealing between the pump body and the diaphragm, affecting the pump's normal operation.
Preventive Measures: Strictly adhere to operational procedures during installation and maintenance. Ensure proper installation of Y-seals and other sealing components, and regularly inspect and replace aged or damaged seals to maintain the diaphragm's sealing performance. Additionally, perform regular maintenance on the pump's components to ensure they remain in good working condition.
Cause: Different diaphragm materials have varying levels of wear resistance, corrosion resistance, and high-temperature tolerance. If the selected diaphragm material is unsuitable for the working environment or medium, it can lead to wear, corrosion, or rupture during operation. In harsh conditions, inappropriate material selection can accelerate diaphragm damage.

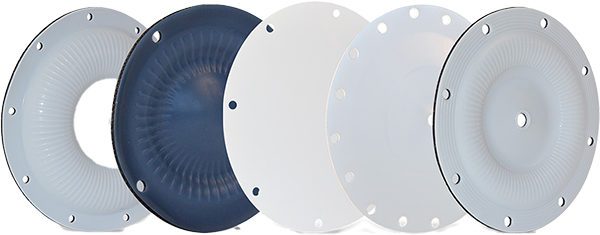

Preventive Measures: When purchasing diaphragms, consider the working environment and medium characteristics. Choose materials with high wear resistance, corrosion resistance, and high-temperature tolerance. Common diaphragm materials include rubber, polytetrafluoroethylene (PTFE), and fluororubber. Select the appropriate material based on specific needs to ensure stable performance over long-term use.
Cause: The pump's working conditions and operation methods significantly impact the diaphragm's lifespan. Excessive working pressure, frequent starts and stops, and unstable flow rates can subject the diaphragm to excessive stress and wear, leading to damage.
Preventive Measures: Optimizing the diaphragm pump's working conditions is an effective way to extend the diaphragm's lifespan. Avoid operating the pump under excessive pressure, reduce frequent starts and stops, and ensure the pump runs under stable conditions. Additionally, control the pump's flow rate to avoid significant fluctuations, which is key to protecting the diaphragm.
Cause: The quality of the diaphragm directly determines its service life. Diaphragms with low elasticity and material strength are prone to fatigue damage after prolonged use, leading to performance degradation or even rupture. Poor-quality diaphragms are more susceptible to damage under high-frequency operation or heavy loads.
Preventive Measures: When purchasing diaphragm pumps, selecting reliable and durable diaphragm materials is crucial. High-quality diaphragm materials not only have high elasticity and strength but also resist fatigue damage from long-term use. Choose reputable manufacturers to ensure the diaphragm quality meets industry standards.
Cause: Failure to promptly discharge air from the diaphragm chamber can cause water hammer, where sudden gas entry into the chamber increases localized stress on the diaphragm, leading to rupture. Water hammer occurs due to incomplete gas compression, resulting in uneven stress on the diaphragm during operation.
Preventive Measures: To prevent water hammer, thoroughly discharge air from the diaphragm chamber before use. Follow the air discharge procedures recommended in the operation manual to ensure complete air removal, avoiding diaphragm damage caused by trapped air.
Cause: Unstable feed can create voids in the diaphragm pump, causing underfeeding or dry running, leading to hammering or impact, and even cavitation. Unstable feed increases stress on the diaphragm, raising the risk of fatigue damage or rupture.
Preventive Measures: Ensure feed stability to avoid underfeeding, cavitation, or impact. Precisely control feed volume, flow rate, and pressure to prevent unstable feed from damaging the diaphragm. Regularly inspect feed equipment to ensure it operates properly.
Cause: Loose crossheads, pistons, or cylinder liners, as well as improperly installed crosshead guides or bearings, can cause piston hammering, leading to hydraulic imbalance and increased stress on the diaphragm, resulting in rupture.
Preventive Measures: Regularly inspect mechanical components for wear. Ensure crossheads, pistons, and cylinder liners are securely fastened and properly installed. Replace worn or damaged components promptly to maintain stable mechanical system operation and prevent diaphragm damage due to mechanical failure.
Cause: The nitrogen accumulator acts as a shock absorber, reducing hydraulic fluctuations' impact on the diaphragm. If the nitrogen accumulator is damaged or under-pressured, the pump loses its damping function, causing hydraulic imbalance and making the diaphragm prone to impact and damage.
Preventive Measures: Regularly check the nitrogen accumulator's condition to ensure its pressure remains within the normal range. Recharge or replace damaged accumulators promptly to maintain smooth pump operation and prevent diaphragm damage due to poor damping.
Cause: Excessive feed temperature accelerates diaphragm aging, especially above 100°C, potentially causing vapor bubbles or gas entry into the diaphragm chamber, leading to uneven stress and fatigue damage.
Preventive Measures: Control feed temperature within the specified range to avoid adverse effects on the diaphragm. If the temperature is too high, implement cooling measures to ensure the feed temperature meets the pump's operational requirements, extending the diaphragm's service life.
Cause: Excessive pressure differential in the diaphragm pump can cause overpressure operation, subjecting the diaphragm to sudden pressure increases and leading to rupture.
Preventive Measures: Maintain the unit's pressure differential within a reasonable range to avoid overpressure operation. Monitor the pump's working pressure in real-time and adjust promptly to ensure the pump operates under normal conditions.
Diaphragm damage is a primary cause of unstable performance and reduced lifespan in diaphragm pumps. By implementing reasonable preventive measures—such as selecting appropriate diaphragm materials, optimizing working conditions, regularly inspecting mechanical and hydraulic systems, and controlling feed stability and temperature—the diaphragm's service life can be effectively extended, ensuring stable pump operation. Therefore, strengthening daily maintenance and adhering to operational standards are key to ensuring normal operation and extending the service life of diaphragm pumps.
