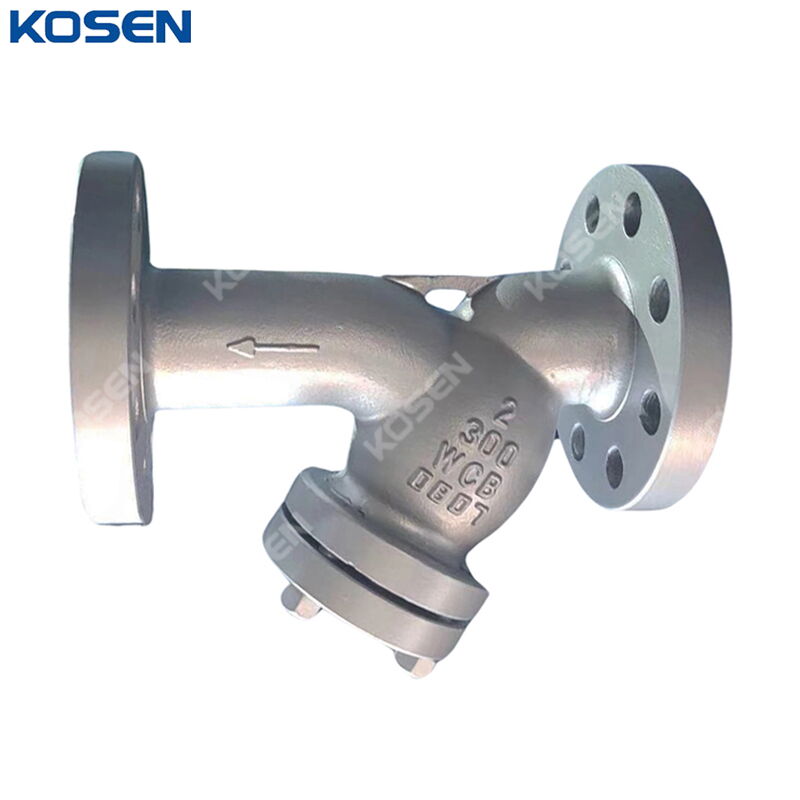

Y Type Pipe Filter, ASME B16.34, ASTM A216 WCB, 2 IN, CL300

Product Name: Y Type Pipe Filter
Design Standard: ASME B16.34
Body Material: ASTM A216 WCB
Screen Material: SS 304
Size: 2 Inch, DN50
Pressure: Class 300 LB, PN50
End Connection: RF Flanged
Temperature Range: -29°C to 425°C
Medium: Steam, High-temperature Steam, Gas, Oil

As a vital component in purification engineering, Y-type strainers have demonstrated remarkable effectiveness in treating both domestic and industrial wastewater. Their popularity stems from numerous design and application advantages. These strainers have successfully processed substantial volumes of wastewater across various industries, facilitating the efficient reuse of valuable water resources and conserving significant amounts of water. The operational benefits of Y-type filters include full automation, low maintenance, a large filtration area, high filtration efficiency, long service life, stainless steel construction, customizable filtration accuracy, and a comprehensive range of specifications. Compared to other filtration devices, Y-type strainers are among the most effective in engineering applications. The treated water not only meets national discharge standards but also achieves the goals of reuse and recycling.

Technical Specification

Product Model: GL41H
Normal Size Range: 1/2-24 Inch (DN15-DN600)
Normal Pressure Rating: PN16-PN420, Class 150-2500 LB
Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A350 LF2, A217 WC6, WC9
Filtering Accuracy:
Water Filter: 18 to 30 mesh
Air Filter: 10 to 100 mesh
Oil Filter: 100 to 480 mesh
Temperature Range: -29°C to +425°C
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)

Standards Compliance

Design and Manufacture: ANSI B16.34, API 600, API 6D
Face to Face (End to End): ANSI B16.10, API 6D
Flanged Connection: 2-24 Inch to ANSI B16.5
Test and Inspection: API 598, API 6D
Butt Welded End: ANSI B16.5

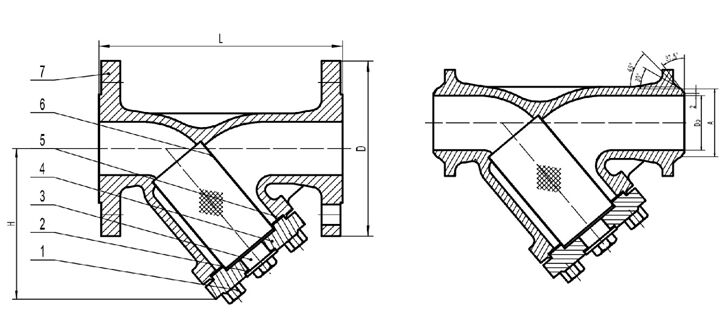

Structural Diagram

Material for Main Parts
