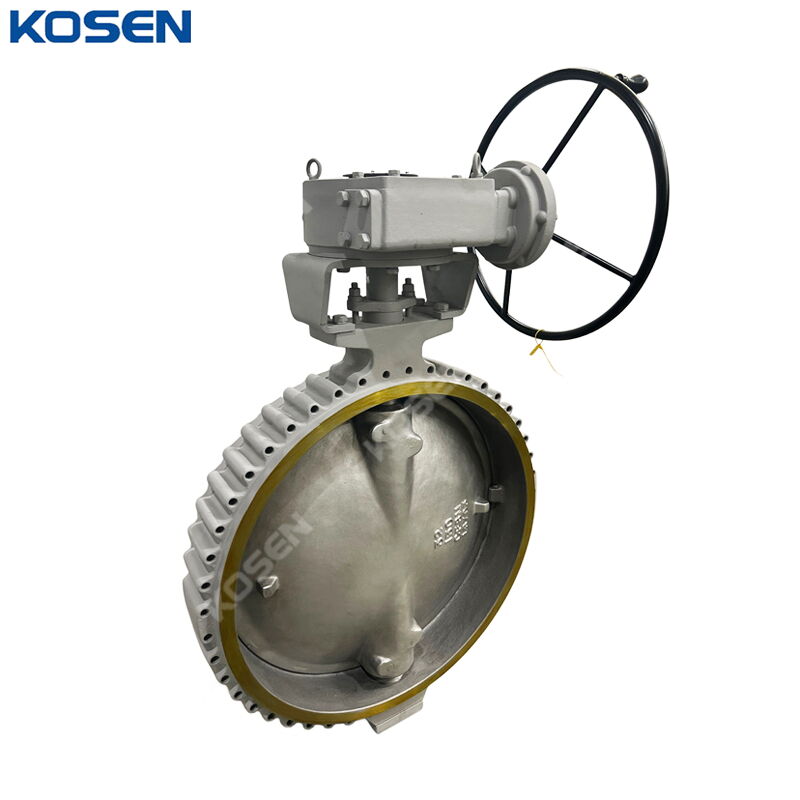

ASTM A216 WCB Butterfly Valves, API 609, 32 IN, CL150, Lug

Product Name: ASTM A216 WCB Butterfly Valve
Type: Double Offset Butterfly Valve
Design Standard: API 609
Body Material: ASTM A216 WCB, Carbon Steel
Size: 32 Inches, DN800, 800 mm
Pressure: Class 150 LB, PN20
End Connection: Lug
Operation: Gear
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 150°C

This Double Offset Butterfly Valve has been successfully applied in demanding and extreme services, including high-temperature applications, steam throttling control, polymerizing media, liquor services with entrained solids, high-cycle industrial gas service, process gas off applications, paper stock isolation, vacuum pump isolation, corrosive chemical service, fire-safe refinery and chemical service, heat transfer service, and hydrocarbon throttling service.

Technical Specification

» Normal Size Range:
   Class 150 LB: 2-60 Inch
   Class 300 LB: 2-48 Inch
   Class 600 LB: 2-24 Inch
» Normal Pressure Rating: Class 150-600 LB, PN10–PN40, 10K–20K
» Body Connection: Wafer type, Lug Type, Double Flange
» Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Nickel Aluminum Bronze, Hastelloy
» Disc Material: Stainless Steel, Duplex Steel, Nickel Aluminum Bronze, Monel
» Stem Material: 17-4PH, SS 316, Duplex Steel, Hastelloy, Titanium Alloys
» Seat Material: PTFE or RTFE with Resilient Energizer
» Packing Material: PTFE
» Shutoff Rating: Class VI, Bubble Tight
» Design Standard: ASME B16.34, ASME VIII, API 609, MSS SP-68, EN 593, EN 12516
» Certifications: API 607, PED
» Shell/Seat Test: API 598
» Face to Face: API 609, ISO 5752
» Manual Operator: Bare Shaft, Lever Handle, Worm Gear Operator
» Automatic Operation: Pneumatic Actuator, Electric Motor
» Temperature Range: Soft Seat: -29°C to 150°C
» Medium: water, gas, oil, etc

Application Scope

» Chemical and petrochemical industries
» Liquefied gas and refrigeration systems
» Heavy industrial applications
» Power and co-generation plants
» Steel and iron works
» Commercial and industrial facilities
» Pulp and paper mills
» Oil refineries and oilfield applications
» Shipbuilding and marine services
» Hydrocarbon processing and gas piping systems
» Local and district energy supply systems
» Construction and infrastructure projects
